Samsung DA97-00209Z Refrigerator Ice Maker Fill Tube and Heater - Part

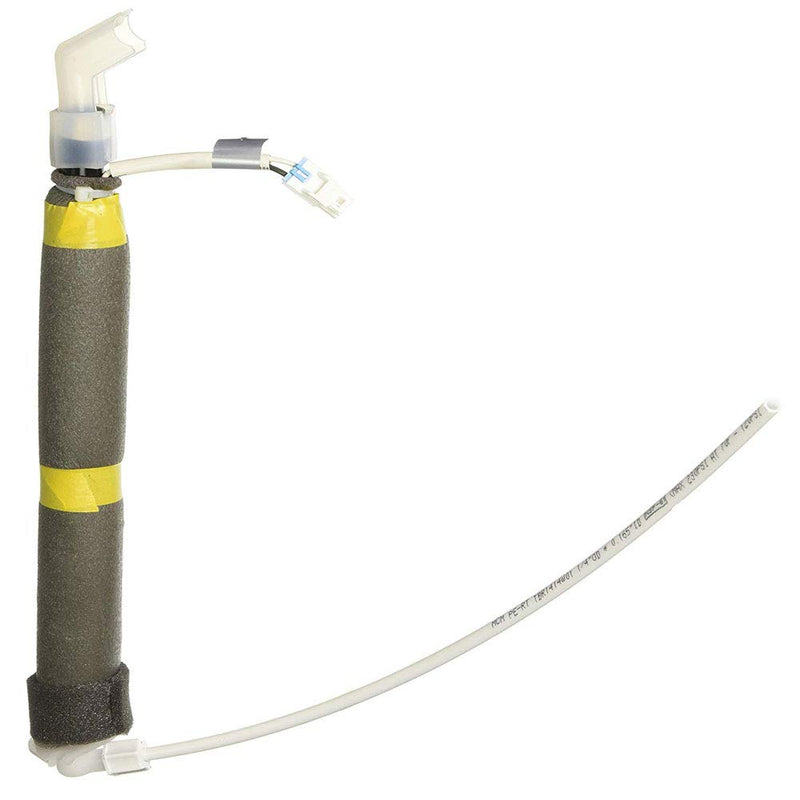

DA97-00209Z Samsung Refrigerator Ice Maker Fill Tube and Heater

Genuine OEM Samsung DA97-00209Z ice maker fill tube and heater assembly for select Samsung French door and side-by-side refrigerators. This assembly delivers water from the supply line to the ice maker mold while the built-in heater prevents the water from freezing inside the tube before reaching the mold. A clogged or frozen fill tube can cause the ice maker to stop producing ice or make undersized, hollow, or misshapen cubes.

Key Features

• Genuine OEM Samsung replacement part number DA97-00209Z
• Ice maker fill tube with integrated heater assembly
• Delivers water to the ice maker mold for consistent ice production
• Built-in heater prevents the fill tube from freezing
• Direct replacement for proper fit and reliable operation

Common Symptoms This Part Fixes

• Ice maker not making ice
• Ice cubes are small, hollow, or misshapen
• Fill tube is frozen or blocked with ice
• Water leaking near the ice maker
• Slow ice production

Installation Tips

Disconnect power and water supply to the refrigerator. Remove the ice maker assembly to access the fill tube. Disconnect the wire harness from the old fill tube heater. Remove the mounting clips or screws securing the old fill tube. Install the new DA97-00209Z fill tube and heater assembly, reconnect the wire harness, and reinstall the ice maker. Restore power and water, then allow 24 hours for the first batch of ice.
