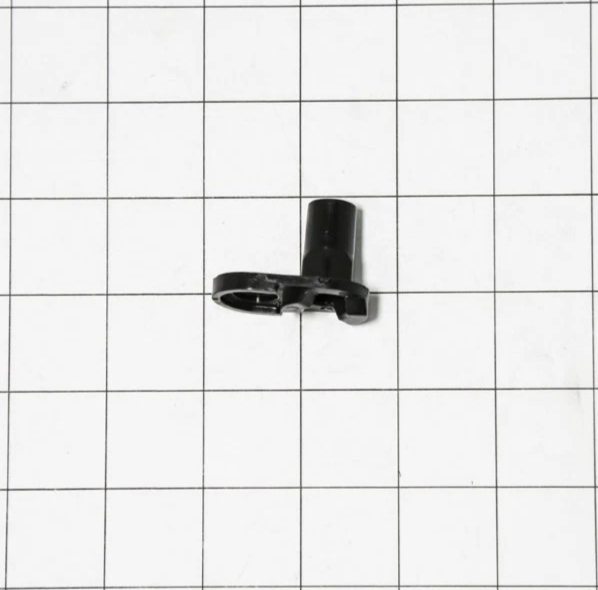

Whirlpool Appliance Closing Cam W10257201 WPW10257201

Appliance Closing Cam – Whirlpool

Whirlpool Appliance Closing Cam W10257201 WPW10257201 This appliance closing cam transfers, changes, supports, or engages mechanical drive motion for washing, drying, mixing, dispensing, door movement, or compaction. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details WPW10257201 Whirlpool Door Closing Cam for Model: 3WSC19D4XB00 3WSC19D4XD00 3WSC19D4XW00 3WSC19D4XY00 3WSC20N4XB00 3WSC20N4XD00 3WSC20N4XW00 3WSC20N4XY00 5WSC20CAYB00 5WSC20CAYY00 6WSC20C6XB00 6WSC20C6XB02 6WSC20C6XB04 6WSC20C6XD00 6WSC20C6XD02 6WSC20C6XD04 6WSC20C6XW00 6WSC20C6XW02 6WSC20C6XW04 6WSC20C6XY00 6WSC20C6XY02 6WSC20C6XY04 6WSC20C6YB00 6WSC20C6YY00 7WSC19D2XL00 7WSC19D2XS00 7WSC19D2XS01 7WSC19D2XW00 BRS70HEANA00 BRS70HRANA00 MSB26C4XYB00 MSB26C4XYM00 MSB26C4XYW00 MSB26C6MDE00 MSB26C6MDE02 MSB26C6MDH00 MSB26C6MDH02 MSB26C6MDM00 MSB26C6MDM02 MSB27C2XAB00 MSB27C2XAM00 MSB27C2XAW00 MSS26C6MFB00 MSS26C6MFB01 MSS26C6MFW00 MSS26C6MFW01 MSS26C6MFZ00 MSS26C6MFZ01 GSC25C4EYB00 GSC25C4EYB01 GSC25C4EYB02 GSC25C4EYW00 GSC25C4EYW01 GSC25C4EYW02 GSC25C4EYY00 GSC25C5EYB00 GSC25C5EYB01 GSC25C5EYB02 GSC25C5EYW00 GSC25C5EYW01 GSC25C5EYW02 GSC25C5EYY00 GSC25C6EYB00 GSC25C6EYB01 GSC25C6EYW00 GSC25C6EYW01 GSC25C6EYY00 GSC25C6EYY01 GSF26C4EXA00 GSF26C4EXA02 GSF26C4EXB00 GSF26C4EXB02 GSF26C4EXF02 GSF26C4EXS00 GSF26C4EXS02 GSF26C4EXS03 GSF26C4EXT00 GSF26C4EXT02 GSF26C4EXW00 GSF26C4EXW02 GSF26C4EXY00 GSF26C4EXY02 GSF26C5EXA00 GSF26C5EXB00 GSF26C5EXB02 GSF26C5EXS00 GSF26C5EXS03 GSF26C5EXT00 GSF26C5EXW00 GSF26C5EXW02 GSF26C5EXY00 GSF26C5EXY02 GSS26C4XXA00 GSS26C4XXA02 GSS26C4XXA03 GSS26C4XXB00 GSS26C4XXB02 GSS26C4XXB03 GSS26C4XXF02 GSS26C4XXW00 GSS26C4XXW02 GSS26C4XXW03 GSS26C4XXY00 GSS26C4XXY02 GSS26C4XXY03 GSS26C5XXA00 GSS26C5XXA02 GSS26C5XXA03 GSS26C5XXB00 GSS26C5XXB02 GSS26C5XXB03 GSS26C5 Product Specifications Brand: Whirlpool Primary SKU: W10257201 Product type: Appliance Closing Cam Application: model-specific appliance repair Match shaft profile, spline or gear teeth, diameter, belt profile, orientation, lubrication requirement, and included hardware Inspect mating gears, bearings, couplers, rollers, belts, and drive components Replaces / Cross-Reference Part Numbers W10257201, WPW10257201 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Driven component will not move correctly slipping, clicking, grinding, squealing, or stripped drive weak or intermittent movement wobble, binding, or incorrect speed Installation Instructions Disconnect power and shut off water or gas when applicable. Document drive routing, spacer order, and orientation, remove guards and retaining hardware, inspect mating shafts and gears, transfer specified grease or hardware only as directed, seat the replacement fully without forcing it, rotate the mechanism by hand, reinstall all guards, reconnect utilities, and perform a controlled test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system or unfamiliar electrical repairs.

Compatible Part Numbers

• W10257201
• WPW10257201

Key Features

• Product type: Appliance Closing Cam
• SKU / MPN: W10257201

Fixes These Symptoms

• Driven component will not move correctly
• slipping
• clicking
• grinding
• squealing
• or stripped drive
• weak or intermittent movement
• wobble
• binding
• or incorrect speed

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off water or gas when applicable. Document drive routing, spacer order, and orientation, remove guards and retaining hardware, inspect mating shafts and gears, transfer specified grease or hardware only as directed, seat the replacement fully without forcing it, rotate the mechanism by hand, reinstall all guards, reconnect utilities, and perform a controlled test.
