Whirlpool Dishwasher High-Limit Thermostat WP661566 661566

Dishwasher High-Limit Thermostat – Whirlpool

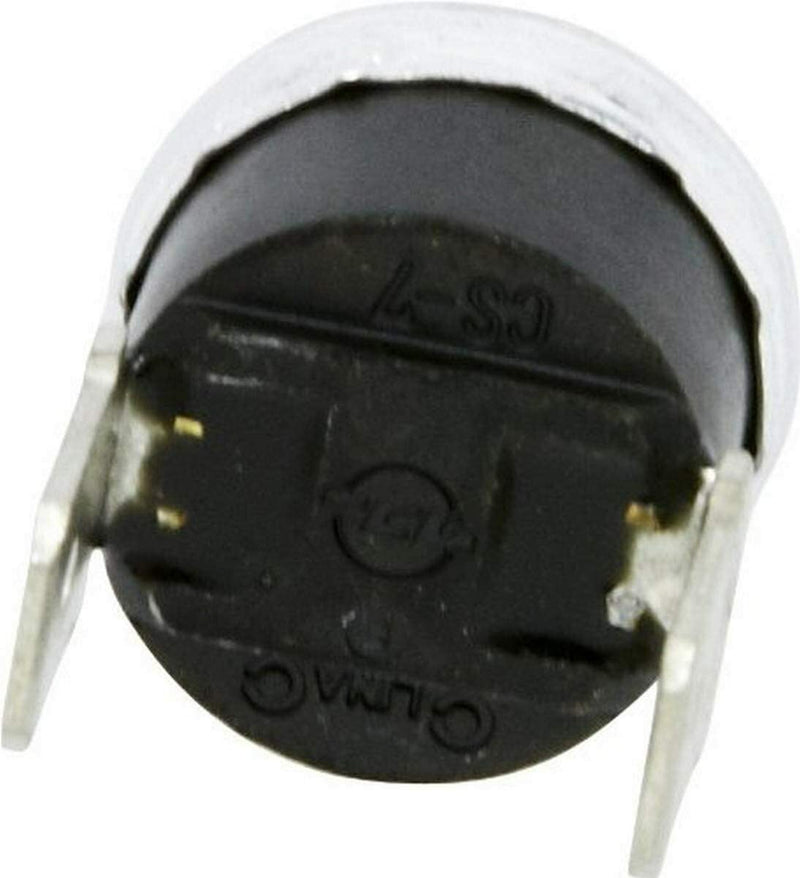

Whirlpool Dishwasher High-Limit Thermostat WP661566 661566 This dishwasher high-limit thermostat monitors, switches, protects, ignites, or controls the related dishwasher circuit. It is intended as a direct replacement for the designated service part. Verify the complete appliance model and serial number, original part number, dimensions, connector or mounting details, and revision before ordering. Part-Specific Details Authentic Genuine Whirlpool Quality replacement part. Whirlpool brands include Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. OEM Whirlpool WP661566 661566 Dishwasher High Limit Thermostat Thermostat has 1/4 inch terminals. This part fixes the following symptoms Not drying dishes properly Part Number WP661566 replaces AP6010246 661566, W10339474, 3369777, 3370783, 3371618, 417169 Product Specifications Brand: Whirlpool Primary SKU: 661566 Product type: Dishwasher High-Limit Thermostat Application: model-specific dishwasher repair Verify dimensions, connector or mounting geometry, color, orientation, and revision against the original Electrical rating, terminal layout, and control revision must match the original Replaces / Cross-Reference Part Numbers WP661566, 661566 Cross-reference numbers may identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Appliance does not start, heat, fill, drain, ignite, or cycle correctly intermittent operation error code component tests open, shorted, or outside specification Installation Instructions Disconnect electrical power and shut off the water supply. Protect the floor, remove standing water where applicable, photograph hose and wiring routes, transfer seals and retainers as specified, and tighten connections evenly. Restore water first, inspect carefully for leaks, then restore power and run a short test cycle. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable. Wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas systems, or unfamiliar electrical work.

Compatible Part Numbers

• WP661566
• 661566

Key Features

• Product type: Dishwasher High-Limit Thermostat
• SKU / MPN: 661566

Fixes These Symptoms

• Appliance does not start
• heat
• fill
• drain
• ignite
• or cycle correctly
• intermittent operation
• error code
• component tests open
• shorted
• or outside specification.

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power and shut off the water supply. Protect the floor, remove standing water where applicable, photograph hose and wiring routes, transfer seals and retainers as specified, and tighten connections evenly. Restore water first, inspect carefully for leaks, then restore power and run a short test cycle.
