Whirlpool Refrigerator Thermostat 61005254 WP61005254 AP6010045

Refrigerator Thermostat – Whirlpool

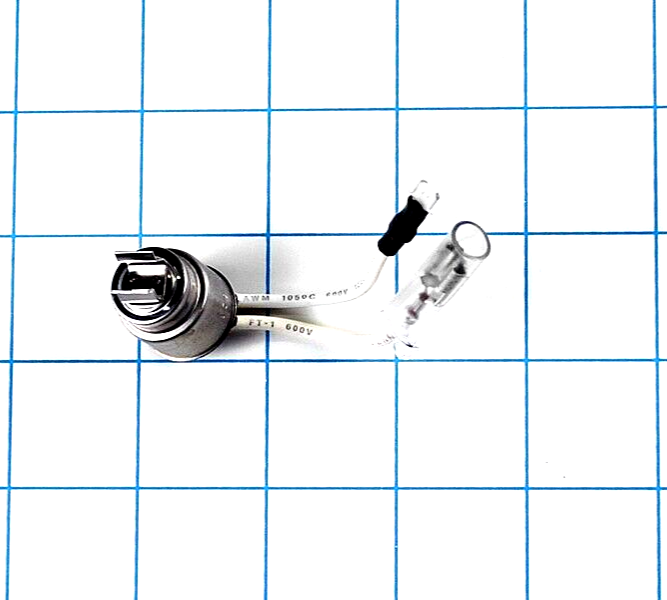

Whirlpool Refrigerator Thermostat 61005254 WP61005254 AP6010045 This refrigerator thermostat supplies, senses, or controls electrical power, temperature, illumination, timing, motor operation, or a safety circuit. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool 61005254 Refrigerator Defrost Thermostat Limit Part Number ER61005254 replaces WP61005254, AP6010045, 61005254, 61001932, 61004833, PS11743221. . Pay attention to the following information: The Defrost Thermostat is designed for use in refrigerators. This component functions as a crucial safety device in the refrigerator's defrost system, ensuring that the freezer does not overheat during the defrost cycle. It accomplishes this by monitoring the temperature of the evaporator coil and deactivating the defrost heater when the coil reaches a certain temperature, effectively safeguarding the freezer from excessive heat. Potential causes of a malfunctioning defrost thermostat include corrosion, a blown fuse within the thermostat, or general wear and tear over time. Recognizable symptoms of a defective Defrost Thermostat may include: - Frost accumulation on the back wall of the freezer - Inadequate cooling in the refrigerator - A cold freezer but a warm refrigerator - Failure of the defrost heater to activate It is important to note that this is also compatible with Hotpoint, RCA, and some Kenmore models. This part effectively addresses the following issues: - Freezer failing to defrost - Freezer being excessively cold - Inability to dispense water - Inoperative ice maker - Excessive warmth in the Product Specifications Brand: Whirlpool Primary SKU: 61005254 Product type: Refrigerator Thermostat Application: model-specific refrigerator repair Verify voltage and electrical rating, connector layout, mounting position, lamp base or sensor placement, and revision Inspect wiring, terminals, grounding, airflow, and the root cause of failure Replaces / Cross-Reference Part Numbers 61005254, WP61005254, AP6010045, 61001932, 61004833, PS11743221 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Appliance will not start, heat, cool, illuminate, or advance correctly intermittent operation incorrect temperature or speed open safety circuit, tripped protection, or related fault code Installation Instructions Disconnect power and verify the circuit is de-energized. Allow lamps and hot surfaces to cool, photograph and label all wires, discharge capacitors using an approved procedure where applicable, transfer connectors without pulling on conductors, secure the replacement and grounding, reinstall covers, and perform a monitored functional test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system or unfamiliar electrical repairs.

Compatible Part Numbers

• 61005254
• WP61005254
• AP6010045
• 61001932
• 61004833
• PS11743221

Key Features

• Product type: Refrigerator Thermostat
• SKU / MPN: 61005254

Fixes These Symptoms

• Appliance will not start
• heat
• cool
• illuminate
• or advance correctly
• intermittent operation
• incorrect temperature or speed
• open safety circuit
• tripped protection
• or related fault code

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and verify the circuit is de-energized. Allow lamps and hot surfaces to cool, photograph and label all wires, discharge capacitors using an approved procedure where applicable, transfer connectors without pulling on conductors, secure the replacement and grounding, reinstall covers, and perform a monitored functional test.
