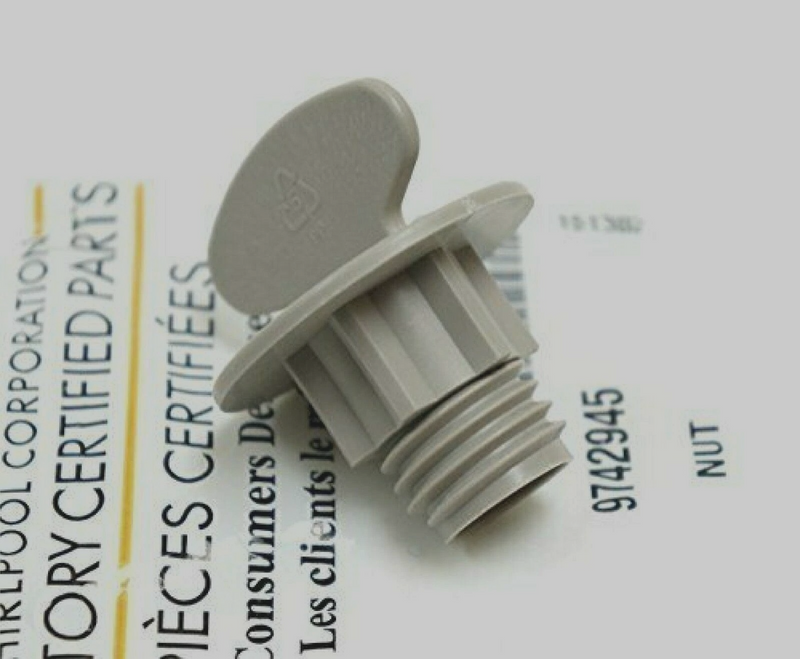

Whirlpool Dishwasher Wash Arm Nut 9742945 AP6013836 PS11747063

Dishwasher Wash Arm Nut – Whirlpool

Whirlpool Dishwasher Wash Arm Nut 9742945 AP6013836 PS11747063 This dishwasher wash arm nut supports water circulation, spray distribution, drainage, or debris processing during the dishwasher cycle. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details The Whirlpool Dishwasher Wash Arm Nut 9742945 AP6013836 PS11747063 is a replacement part designed for various Whirlpool, Maytag, and KitchenAid dishwasher models. This electric-powered wash arm is made of plastic and comes in a multicolor matte finish. It is suitable for built-in/ integrated dishwashers and includes the necessary components for installation. As a genuine Whirlpool brand part, it is a reliable choice for ensuring proper functionality and performance in your dishwasher. Product Specifications Brand: Whirlpool Primary SKU: 9742945 Product type: Dishwasher Wash Arm Nut Application: model-specific dishwasher repair Verify free movement, connector or shaft match, seals, mounting isolation, and unobstructed water paths Inspect related screens, filters, bearings, and hoses Replaces / Cross-Reference Part Numbers 9742945, AP6013836, PS11747063 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Poor cleaning weak or uneven spray failure to drain or circulate humming grinding, scraping, vibration, or seized movement Installation Instructions Disconnect power and shut off water. Remove standing water where necessary, document hose and wiring routes, clear debris from the sump or spray path, transfer seals and retainers, tighten connections evenly, rotate moving parts by hand, restore water and check for leaks, then run a short test cycle. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• 9742945
• AP6013836
• PS11747063

Key Features

• Product type: Dishwasher Wash Arm Nut
• SKU / MPN: 9742945

Fixes These Symptoms

• Poor cleaning
• weak or uneven spray
• failure to drain or circulate
• humming
• grinding
• scraping
• vibration
• or seized movement

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off water. Remove standing water where necessary, document hose and wiring routes, clear debris from the sump or spray path, transfer seals and retainers, tighten connections evenly, rotate moving parts by hand, restore water and check for leaks, then run a short test cycle.
