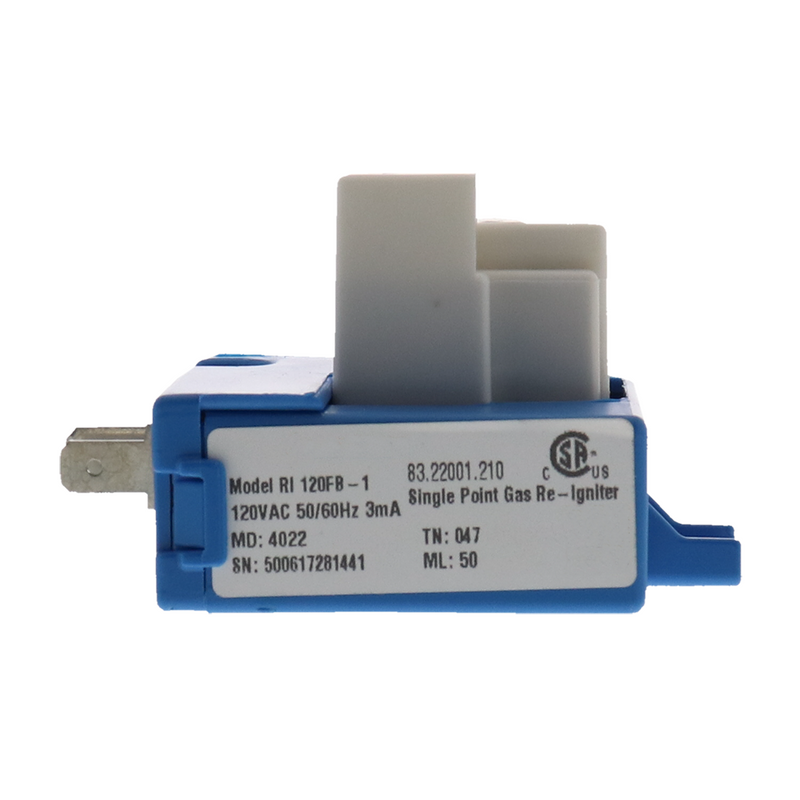

Whirlpool Oven Spark Module PN-ERW11601369 W11601369 WP8190929

Oven Spark Module – Whirlpool

Whirlpool Oven Spark Module PN-ERW11601369 W11601369 WP8190929 This oven spark module creates or controls the ignition source needed to light the gas burner safely and consistently. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details W11601369 Gas Range Oven Spark Module for Whirlpool WP8190929 W10116108 FOR MODEL: JDRP436WP02 JDRP436WP03 JDRP548WP02 JDRP548WP03 JGCP436WP01 JGCP436WP02 JGCP548WP02 JGRP436WP01 JGRP436WP02 JGRP548WP02 JLRP436WP00 JLRP436WP01 JLRP548WP00 JLRP548WP01 JDRP436WP02 JDRP436WP03 JDRP548WP02 JDRP548WP03 JGCP436WP01 JGCP436WP02 JGCP548WP02 JGRP436WP01 JGRP436WP02 JGRP548WP02 JLRP436WP01 JLRP548WP00 JLRP548WP01 KDRS462VSS00 KDRS462VSS02 KDRS462VSS03 KDRS467VBK00 KDRS467VBK01 KDRS467VBU00 KDRS467VBU01 KDRS467VMB00 KDRS467VMW00 KDRS467VMW01 KDRS467VSD00 KDRS467VSD01 KDRS467VSS03 KDRS467VSS04 KDRS467VSS05 KDRS483VBK01 KDRS483VBU01 KDRS483VMW01 KDRS483VSD01 KDRS483VSS02 KDRS483VSS03 KDRS483VSS04 KDRU767VSS03 KDRU767VSS04 KDRU783VSS02 KDRU783VSS03 KGCU462VSS00 KGCU462VSS01 KGCU462VSS02 KGCU467VSS01 KGCU467VSS02 KGCU482VSS00 KGCU482VSS01 KGCU482VSS02 KGCU483VSS01 KGCU483VSS02 KGCU484VSS00 KGCU484VSS01 KGCU484VSS02 Product Specifications Brand: Whirlpool Primary SKU: PN-ERW11601369 Product type: Oven Spark Module Application: model-specific oven repair Verify connector style, lead length, mounting position, ceramic shape, and burner application Inspect wiring, ground path, and burner ports before replacement Replaces / Cross-Reference Part Numbers PN-ERW11601369, W11601369, WP8190929, W10116108 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Burner will not ignite delayed or intermittent ignition repeated clicking weak or absent spark cracked ceramic or damaged lead Installation Instructions Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• PN-ERW11601369
• W11601369
• WP8190929
• W10116108

Key Features

• Product type: Oven Spark Module
• SKU / MPN: PN-ERW11601369

Fixes These Symptoms

• Burner will not ignite
• delayed or intermittent ignition
• repeated clicking
• weak or absent spark
• cracked ceramic or damaged lead

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition.
