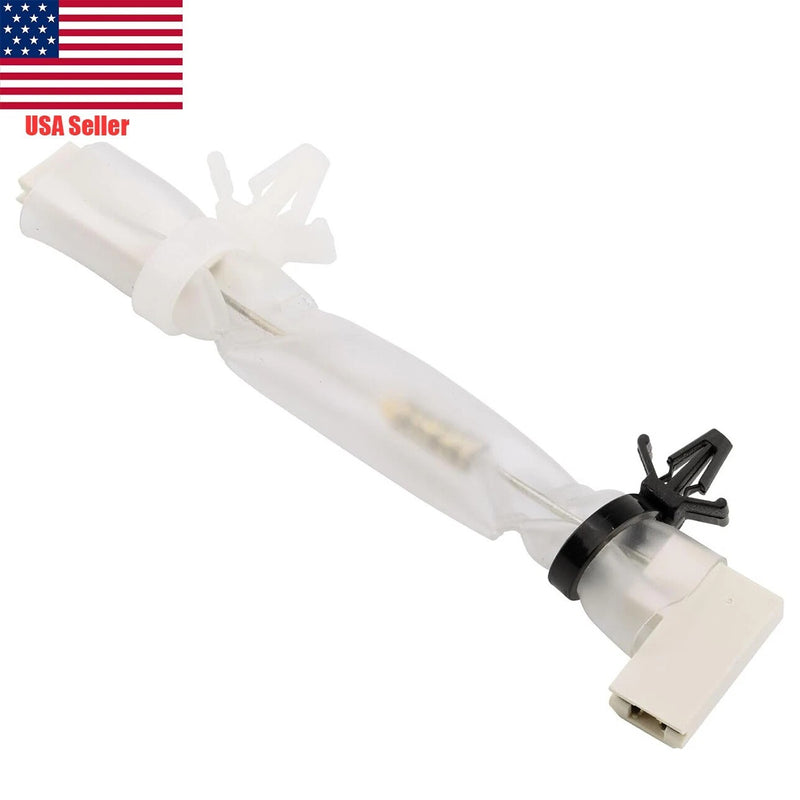

Range Thermal Fuse Replacement For: Whirlpool W10545255

Range Thermal Fuse Replacement – ERP

Restore a compatible Whirlpool, Maytag, or KitchenAid built-in electric oven or cooktop with this aftermarket direct replacement ceramic thermal fuse. The fuse is designed to interrupt the circuit when an unsafe temperature condition occurs. Diagnose the cause of overheating and confirm the fuse is open before replacing it. This ERP part is not manufactured by the original appliance brand.

Compatible Part Numbers

• ERW10545255
• W10545255
• WPW10545255
• WHIRLPOOL

Key Features

• Direct replacement: Aftermarket ceramic range thermal fuse for compatible Whirlpool, Maytag, and KitchenAid applications.
• Primary function: Opens the circuit when excessive temperature reaches the fuse's safety threshold.
• Key benefit: Helps restore safe operation after the underlying overheating condition is diagnosed and corrected.
• Installation ease: Match the temperature and electrical rating, terminal layout, mounting, and appliance model before fitting; includes one fuse.

Fixes These Symptoms

• Oven or cooktop heating circuit will not operate
• Appliance shuts down after an overheating event
• Thermal fuse tests open during diagnosis
• Heating operation is interrupted after wiring and control checks

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid

Compatible Models

• MEW7530DB00
• KEBS279BWH00
• WOS92EC7AS02

Verify the complete appliance model before ordering. These are source-listed applications, and fitment can vary by configuration.

Installation Instructions

1. Confirm the complete appliance model and replacement fuse before starting.
2. Disconnect power and verify the appliance is de-energized. Shut off gas on gas models before service access.
3. Service should be performed by a qualified technician.
4. Match the exact temperature and electrical rating, terminal layout, mounting, and service-manual procedure.
5. Find and correct the cause of overheating before installing the replacement.
6. Never bypass a fuse, thermostat, or interlock. Reassemble all guards before testing.
7. Always verify your complete appliance model number before ordering.

For appliance cleaning and care products, visit affresh.com.

ERP aftermarket replacement part: This part is not manufactured by or affiliated with Whirlpool, Maytag, or KitchenAid. Brand names and original part numbers are used for identification. Verify your appliance model, ratings, and part number before ordering.
