Refrigerator Ice Maker Assembly 243297613 / 243297609

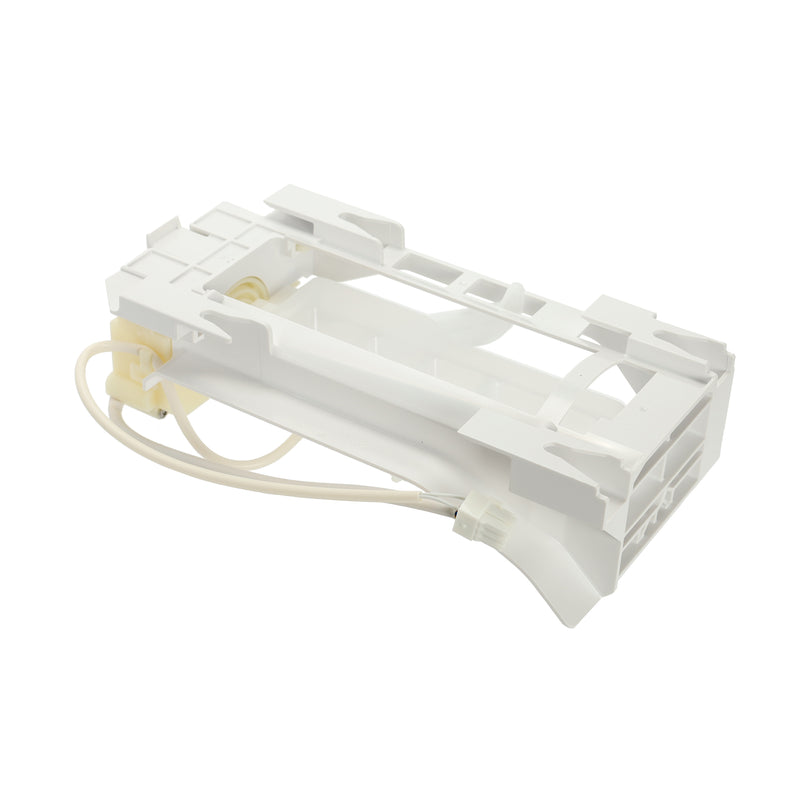

Frigidaire Refrigerator Ice Maker Assembly 243297613

The genuine OEM Frigidaire 243297613 is a complete refrigerator ice maker assembly with housing, mold, motor module and wiring harness. It is the factory replacement for many Frigidaire, Electrolux, Kenmore and Crosley refrigerators, including bottom freezer and French door models, and supersedes several earlier ice maker part numbers.

Technical Specifications

Symptoms Fixed

• Refrigerator not making ice
• Ice maker not ejecting or harvesting ice
• Ice bin filled with a solid ice block
• Cracked ice tray leaking water into the bin
• Ice maker making small or hollow cubes

Part Compatibility and Cross Reference Numbers

Replaces: 243297603, 243297606, 243297607, 243297609, 243297801, 243297901, 243298001, 243298101, 243298401, 243298501, AP6995374

Compatible brands: Frigidaire, Electrolux, Kenmore, Crosley, Gibson, Kelvinator, Westinghouse

Compatible models include: FGHB2866PE0 and many Frigidaire, Electrolux and Kenmore bottom freezer and French door refrigerators

Please verify fitment using your appliance's full model number before purchasing.

Installation Instructions

1. Unplug the refrigerator or switch off the breaker.
2. Remove the ice bin and turn off the ice maker.
3. Remove the mounting screws holding the ice maker to the freezer wall.
4. Disconnect the wiring harness plug and remove the old ice maker.
5. Connect the harness to the new ice maker and mount it with the screws.
6. Restore power, reinstall the ice bin and allow up to 24 hours for ice production.
