Generic Replacement Part
Refrigerator Defrost Timer WR9X480 WR9X342 WR9X282 WR9X278 ERWR9X480
ERWR9X480
$16.14
Availability
In Stock
Part Number
ERWR9X480
MPN
ERWR9X480
Category
Defrost Timer
Quality Parts
Built to OEM specs
Easy to Install
Common DIY repair
Reliable
Restores function
Long-Lasting
Durable & reliable

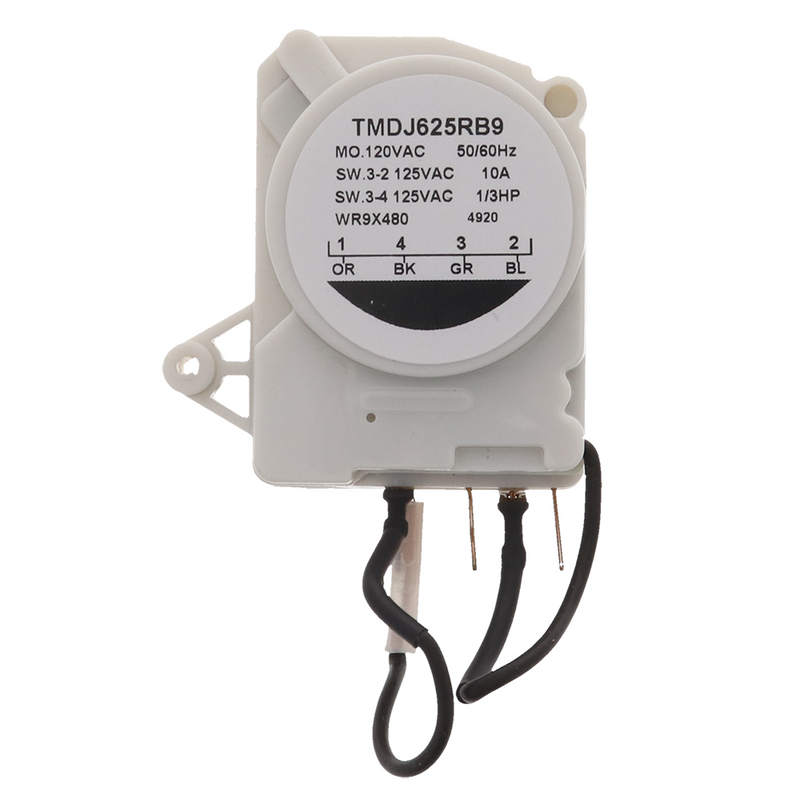

Refrigerator Defrost Timer WR9X480
Exact Replacement Refrigerator Defrost Timer part number WR9X480. 4 Terminals are on the timer, numbered 1,4,3,2 and has a wire from the motor to terminal number 3 and has a wire connected to terminal number 1. This timer is a 6 hour 25 minute timer, which means every 6 hours it turns on the heater for 25 minutes. Timer Motor is rated 120V, 1/3HP, 10A.
Cross Reference Info:
ERWR9X480, SC957, SPG1401GE, WR9X278, WR9X282, WR9X283,
WR9X297, WR9X306, WR9X308, WR9X309, WR9X310, WR9X313,
WR9X316, WR9X329, WR9X330, WR9X330R, WR9X332, WR9X334,
WR9X335, WR9X336, WR9X339, WR9X340, WR9X341, WR9X342,
WR9X345, WR9X346, WR9X350, WR9X363, WR9X364, WR9X368,
WR9X368R, WR9X369, WR9X370, WR9X370R, WR9X376, WR9X409,
WR9X421, WR9X438, WR9X440, WR9X480, WR9X5117, WR9X5127,
WR9X5192
Part Number
ERWR9X480
Brand
Generic Replacement Part
Category
Defrost Timer
Availability
In Stock
- Unplug the refrigerator and protect food. Locate the defrost timer (control housing, kick plate, or compressor area varies by model). Photograph wiring, remove the mounting screws and connectors, transfer each wire to the matching terminal, secure the new timer, reinstall panels, restore power, and verify cooling/defrost operation. Follow the appliance service sheet for model-specific terminal placement.
WR9X480, WR9X342, WR9X282, WR9X278, AP2635477, PS310849, AH310849, WR9X330, WR9X341
- Freezer not defrosting; excessive frost or ice buildup; refrigerator or freezer too warm; inconsistent cooling; refrigerator runs too long; timer will not advance.
Compatible models
TBF18ZW, HMG-2299-2 BM-9N69A
