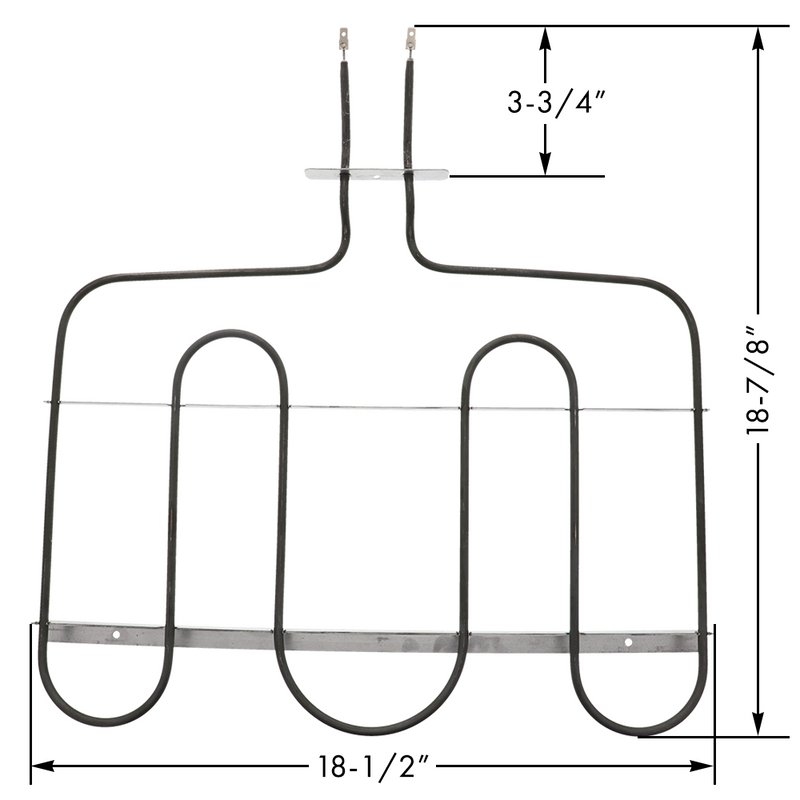

Range Bake Element Replacement For: Whirlpool / KitchenAid W10276482 74011117

Range Bake Element Replacement – ERP

Restore dependable bake-cycle heat in a compatible Whirlpool or KitchenAid electric range with this direct replacement oven bake element. It is rated at 2800 watts at 240 volts or 2100 watts at 208 volts and uses 1/4-inch male push-in terminals. Loss of heat, intermittent operation, or visible damage can have several causes, so check the element, wiring, and controls before replacement.

Compatible Part Numbers

• ERB1117
• B1117
• W10276482
• 74011117

Key Features

• Direct replacement: Oven bake element for compatible Whirlpool and KitchenAid applications using the listed references.
• Primary function: Produces heat for conventional and convection oven bake cycles.
• Key benefit: Helps restore even, reliable baking performance when the original element is confirmed faulty.
• Installation ease: Match the 2800W/240V or 2100W/208V rating, 1/4-inch terminals, shape, and mounting points before fitting.

Fixes These Symptoms

• Oven does not heat during the bake cycle
• Weak, uneven, or intermittent bake heat
• Element has visible cracks, blisters, or burn marks
• Element tests open after wiring and control checks

Compatible Brands

• Whirlpool
• KitchenAid

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Disconnect power at the supply and verify that the appliance is de-energized.
2. Confirm the complete appliance model and replacement element before starting.
3. Electrical service should be performed by a qualified technician.
4. Match the element ratings, terminals, dimensions, shape, and mounting points.
5. Label wiring and use approved connections and the service-manual torque requirements.
6. Replace damaged wiring or connectors rather than reusing burned components, then reinstall covers before a controlled functional test.
7. Always verify your complete appliance model number before ordering.

For appliance cleaning and care products, visit affresh appliance cleaning products.

Product Details

• SKU: ERB1117
• Primary part number: W10276482
• UPC: 840993011849
• Product type: Range bake element

ERP replacement part: This part is not manufactured by or affiliated with Whirlpool or KitchenAid. Brand names and original part numbers are used for identification. Verify your appliance model, element ratings, terminals, and part number before ordering.
