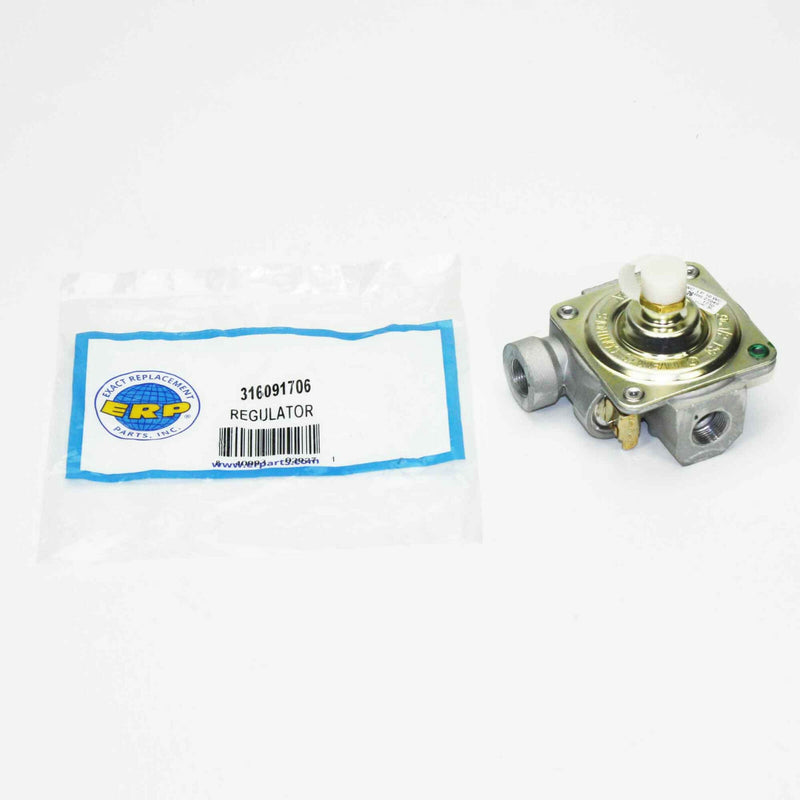

Range Gas Pressure Regulator For Frigidaire 316091706
Part Number 316091706 replaces AP2125390 316416700, 318269300, 496051, 7316091706, 7316416700, AH438464, EA438464, PS438464.
1/2" x 1/2" NPT. 4"/10" convertible. Set at 4" natural gas. Includes shut-off valve.
This 1/2" x 1/2" NPT. 4"/10" convertible. Gas Regulators are designed primarily for main burner and pilot load applications where precise control of tiny flows is an essential operating requirement.
Housings are of high-strength aluminum die castings. They may be used with natural, manufactured, mixed, LP, or LP gas-air mixture.
Features:
Convertible regulators - preset to deliver outlet pressures for either NAT or LP gases
Integral vent limiting orifice as the breather hole
Output pressure: 4"
Specs
–
Size: 1/2"
BTU Capacity (Fixed Orifice): 40000
BTU Capacity (Burner and Pilot): 125000
BTU Capacity (Burner): 125000
Max Inlet Pressure: 1/2 PSI
Output Pressure: 4"
Spring Range: 4" NG / 10" LPThis is a 1/2" x 1/2" NPT gas regulator that can be easily converted from natural gas to LP gas. It is designed for applications where precise control of small gas flows is essential for main burner and pilot load. The regulator is housed in a sturdy aluminum die-casting and can be used with various types of gas like natural, manufactured, mixed, LP or LP gas-air mixture.
The regulator comes with preset outlet pressures for either NAT or LP gases. It also has an integral vent limiting orifice that serves as the breather hole. Its output pressure is 4" and its spring range is 4" NG/10" LP. This regulator has a maximum inlet pressure of 1/2 PSI.
Here are the specifications of the regulator:
- Size: 1/2"
- BTU Capacity (Fixed Orifice): 40000
- BTU Capacity (Burner and Pilot): 125000
- BTU Capacity (Burner): 125000
Brand New Item
