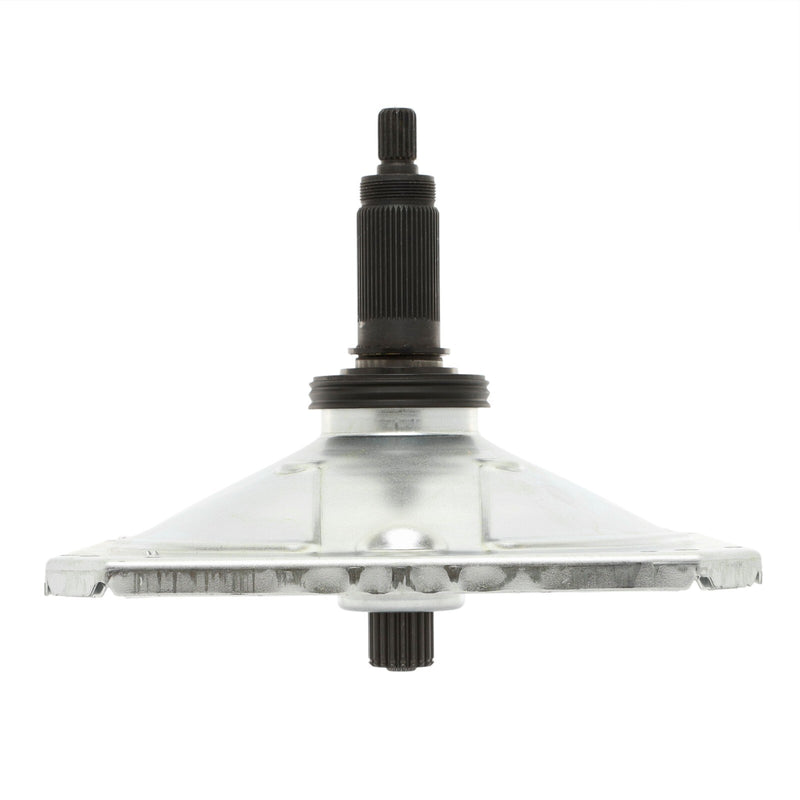

Whirlpool Appliance Washing Machine Gear-Case Transmission W11393685 WPW11393685

Appliance Washing Machine Gear-Case Transmission – Whirlpool

Whirlpool Appliance Washing Machine Gear-Case Transmission W11393685 WPW11393685 This appliance washing machine gear-case transmission transfers, changes, or engages mechanical drive motion for washing, spinning, mixing, or attachment operation. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool WPW11393685 Washing Machine Gear-case Transmission W11393685 Product Specifications Brand: Whirlpool Primary SKU: W11393685 Product type: Appliance Washing Machine Gear-Case Transmission Application: model-specific appliance repair Match shaft profile, spline count, gear teeth, orientation, lubrication requirement, and included hardware Inspect mating gears, splines, bearings, couplers, and drive components Replaces / Cross-Reference Part Numbers W11393685, WPW11393685 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Agitator, basket, mixer, or attachment will not move correctly slipping, clicking, grinding, or stripped drive weak agitation or spin incorrect speed or direction Installation Instructions Disconnect power and shut off water when applicable. Document component order and orientation, remove covers and retaining hardware, inspect mating splines and gears, transfer specified grease or hardware only as directed, seat the replacement fully without forcing it, rotate the mechanism by hand, reinstall all guards, reconnect utilities, and perform a controlled test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for unfamiliar electrical or mechanical repairs.

Compatible Part Numbers

• W11393685
• WPW11393685

Key Features

• Product type: Appliance Washing Machine Gear-Case Transmission
• SKU / MPN: W11393685

Fixes These Symptoms

• Agitator
• basket
• mixer
• or attachment will not move correctly
• slipping
• clicking
• grinding
• or stripped drive
• weak agitation or spin
• incorrect speed or direction

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off water when applicable. Document component order and orientation, remove covers and retaining hardware, inspect mating splines and gears, transfer specified grease or hardware only as directed, seat the replacement fully without forcing it, rotate the mechanism by hand, reinstall all guards, reconnect utilities, and perform a controlled test.
