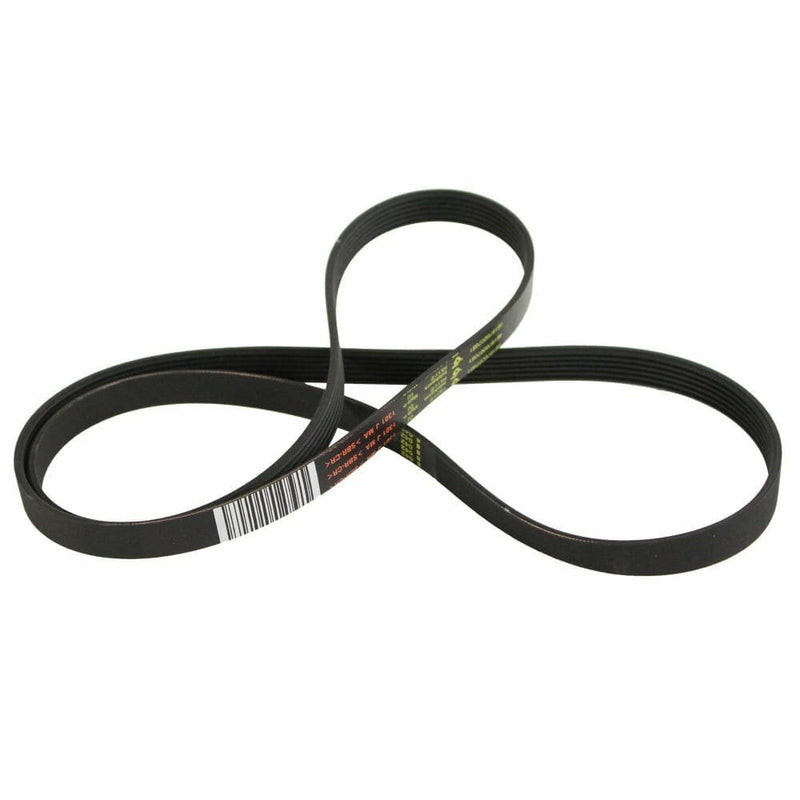

Whirlpool Washer Drive Belt W10388414 AP6020747 8181670

Washer Drive Belt – Whirlpool

Whirlpool Washer Drive Belt W10388414 AP6020747 8181670 This washer drive belt transfers motor rotation to the washer drive system at the designed speed and tension. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool W10388414 Washer Belt Part Number WPW10388414 replaces AP6020747 W10388414, 8181670, 8182633, 8183269, PS11754067, W10116915. Brand New Item Product Specifications Brand: Whirlpool Primary SKU: W10388414 Product type: Washer Drive Belt Application: model-specific washer repair Match belt length, width, rib count, profile, and routing Inspect pulleys, splutch, motor mount, bearings, and tension components Replaces / Cross-Reference Part Numbers W10388414, AP6020747, 8181670, 8182633, 8183269, PS11754067, W10116915, WPW10388414 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Basket or agitator will not move slow or weak spin squealing slipping under load burning-rubber odor belt is frayed, stretched, cracked, or broken Installation Instructions Disconnect power and shut off water. Move the washer safely, access the drive system, photograph belt routing, rotate the pulley while easing off the old belt, inspect pulleys and bearings, route the replacement with the ribs correctly seated, rotate by hand for several revolutions, reinstall shields, level the washer, reconnect utilities, and test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for unfamiliar electrical or mechanical repairs.

Compatible Part Numbers

• W10388414
• AP6020747
• 8181670
• 8182633
• 8183269
• PS11754067
• W10116915
• WPW10388414

Key Features

• Product type: Washer Drive Belt
• SKU / MPN: W10388414

Fixes These Symptoms

• Basket or agitator will not move
• slow or weak spin
• squealing
• slipping under load
• burning-rubber odor
• belt is frayed
• stretched
• cracked
• or broken

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off water. Move the washer safely, access the drive system, photograph belt routing, rotate the pulley while easing off the old belt, inspect pulleys and bearings, route the replacement with the ribs correctly seated, rotate by hand for several revolutions, reinstall shields, level the washer, reconnect utilities, and test.
