Whirlpool Dryer Drive Belt W10198086 WPW10198086 AP6016842

Dryer Drive Belt – Whirlpool

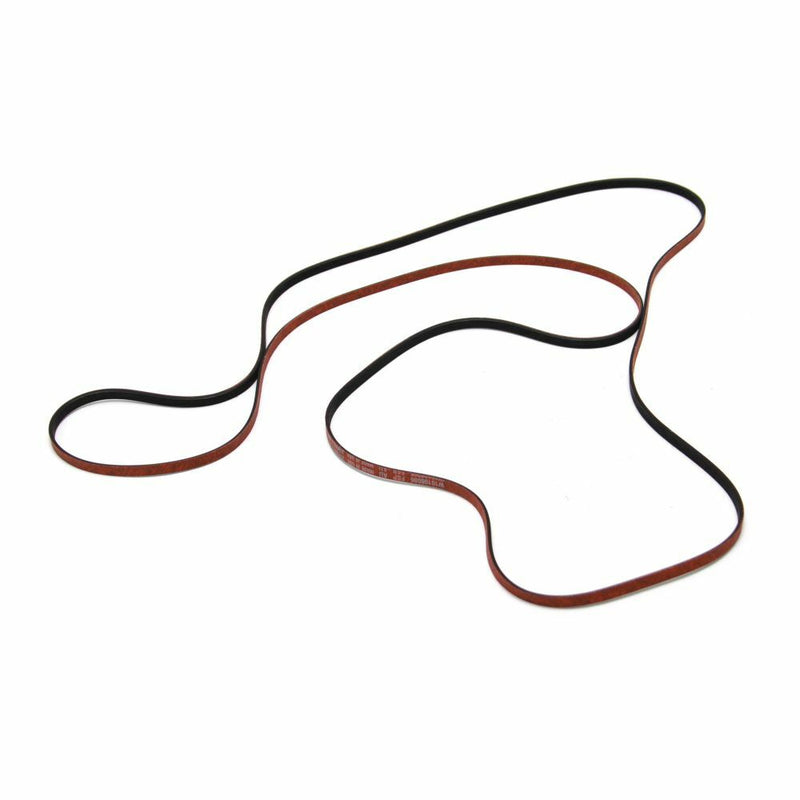

Whirlpool Dryer Drive Belt W10198086 WPW10198086 AP6016842 This dryer drive belt transfers motor rotation to the drum, agitator, or drive system at the designed speed and tension. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool WPW10198086 W10198086 Maytag Dryer Belt Cross Reference Information Part Number WPW10198086 replaces AP6016842, W10198086, PS11750135. Product Specifications Brand: Whirlpool Primary SKU: W10198086 Product type: Dryer Drive Belt Application: model-specific dryer repair Match belt length, width, rib count, profile, and routing Inspect pulleys, rollers, shafts, and tensioner for wear before fitting a new belt Replaces / Cross-Reference Part Numbers W10198086, WPW10198086, AP6016842, PS11750135 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Drum or agitator does not turn squealing or thumping slipping under load burning-rubber odor belt is frayed, stretched, cracked, or broken Installation Instructions Disconnect power and shut off gas when applicable. Open the service access specified for the model, photograph belt routing, release tension at the idler, remove the old belt, inspect pulleys and drum supports, route the replacement with the ribbed side correctly positioned, restore tension, rotate the assembly by hand, reinstall all panels, and test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work or unfamiliar electrical repairs.

Compatible Part Numbers

• W10198086
• WPW10198086
• AP6016842
• PS11750135

Key Features

• Product type: Dryer Drive Belt
• SKU / MPN: W10198086

Fixes These Symptoms

• Drum or agitator does not turn
• squealing or thumping
• slipping under load
• burning-rubber odor
• belt is frayed
• stretched
• cracked
• or broken

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off gas when applicable. Open the service access specified for the model, photograph belt routing, release tension at the idler, remove the old belt, inspect pulleys and drum supports, route the replacement with the ribbed side correctly positioned, restore tension, rotate the assembly by hand, reinstall all panels, and test.
