Whirlpool KitchenAid Stand Mixer Bowl-Lift Adjusting Cam 9703426 W11721849

Stand Mixer Bowl-Lift Adjusting Cam – Whirlpool

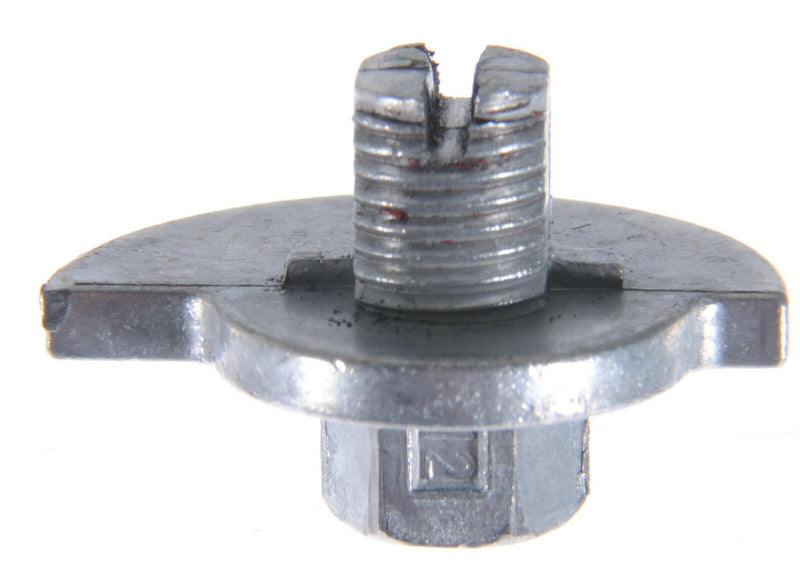

Whirlpool KitchenAid Stand Mixer Bowl-Lift Adjusting Cam 9703426 W11721849 This metal adjusting cam is used in compatible KitchenAid bowl-lift stand mixers to set how high the bowl rises relative to the beater. Correct adjustment improves mixing coverage while preventing the beater from striking the bowl. Product Specifications Brand: Whirlpool / KitchenAid Primary SKU: 9703426 Current replacement: W11721849 Product type: Stand Mixer Bowl-Lift Adjusting Cam Material: metal Application: compatible 5-, 6-, and 7-quart bowl-lift stand mixers; verify exact model Replaces / Cross-Reference Part Numbers 9703426, W11721849, AP3038061, 905375, AH401586, EA401586, PS401586, B003N6SKDW Symptoms of Failure Mixer bowl sits too high or too low beater contacts the bowl excessive clearance between beater and bowl poor mixing at the bottom of the bowl bowl-lift height cannot be adjusted correctly. Installation and Adjustment Unplug the mixer. Remove the housing or base components required by the model-specific service manual to access the bowl-lift adjusting cam. Record the original cam position, replace the cam and secure its fastener, then raise the bowl and check beater-to-bowl clearance. Lower the bowl and turn the cam in small increments until the beater clears the bowl without contact at operating speed. Reassemble all covers before testing. Compatibility and Safety Verify compatibility using the model and serial label. Disconnect power before opening the mixer. Do not operate the mixer if the beater contacts the bowl after adjustment.

Compatible Part Numbers

• 9703426
• W11721849
• AP3038061
• 905375
• AH401586
• EA401586
• PS401586
• B003N6SKDW

Key Features

• Product type: Stand Mixer Bowl-Lift Adjusting Cam
• SKU / MPN: 9703426

Fixes These Symptoms

• Mixer bowl sits too high or too low
• beater contacts the bowl
• excessive clearance between beater and bowl
• poor mixing at the bottom of the bowl
• bowl-lift height cannot be adjusted correctly.

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Unplug the mixer. Remove the housing or base components required by the model-specific service manual to access the bowl-lift adjusting cam. Record the original cam position, replace the cam and secure its fastener, then raise the bowl and check beater-to-bowl clearance. Lower the bowl and turn the cam in small increments until the beater clears the bowl without contact at operating speed. Reassemble all covers before testing.
