Whirlpool Oven Wall Oven Light Socket W11281687 W11594027

Oven Wall Oven Light Socket – Whirlpool

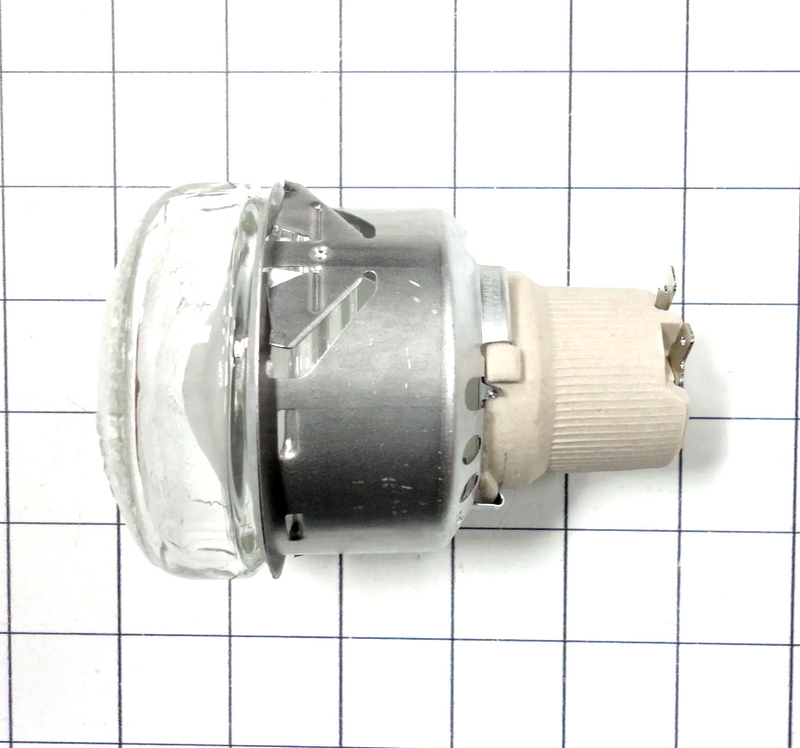

Whirlpool Oven Wall Oven Light Socket W11281687 W11594027 This oven wall oven light socket provides or protects appliance illumination so the interior, cooktop, or controls remain visible. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool W11594027 Wall Oven Light Socket W11281687Brand New Item Product Specifications Brand: Whirlpool Primary SKU: W11281687 Product type: Oven Wall Oven Light Socket Application: model-specific oven repair Verify voltage, lamp base or LED connector, lens dimensions, heat rating, mounting tabs, and position Allow the old lamp and surrounding surfaces to cool Replaces / Cross-Reference Part Numbers W11281687, W11594027 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Light is dim, flickering, intermittent, or inoperative lens is cracked, discolored, loose, melted, or missing Installation Instructions Disconnect power and allow the lamp to cool. Remove the lens or cover without forcing retaining tabs, replace the lamp or module with the specified rating, transfer wiring where applicable, seat the lens and moisture or heat protection correctly, restore power, and confirm illumination with the door or control switch. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system or unfamiliar electrical repairs.

Compatible Part Numbers

• W11281687
• W11594027

Key Features

• Product type: Oven Wall Oven Light Socket
• SKU / MPN: W11281687

Fixes These Symptoms

• Light is dim
• flickering
• intermittent
• or inoperative
• lens is cracked
• discolored
• loose
• melted
• or missing

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and allow the lamp to cool. Remove the lens or cover without forcing retaining tabs, replace the lamp or module with the specified rating, transfer wiring where applicable, seat the lens and moisture or heat protection correctly, restore power, and confirm illumination with the door or control switch.
