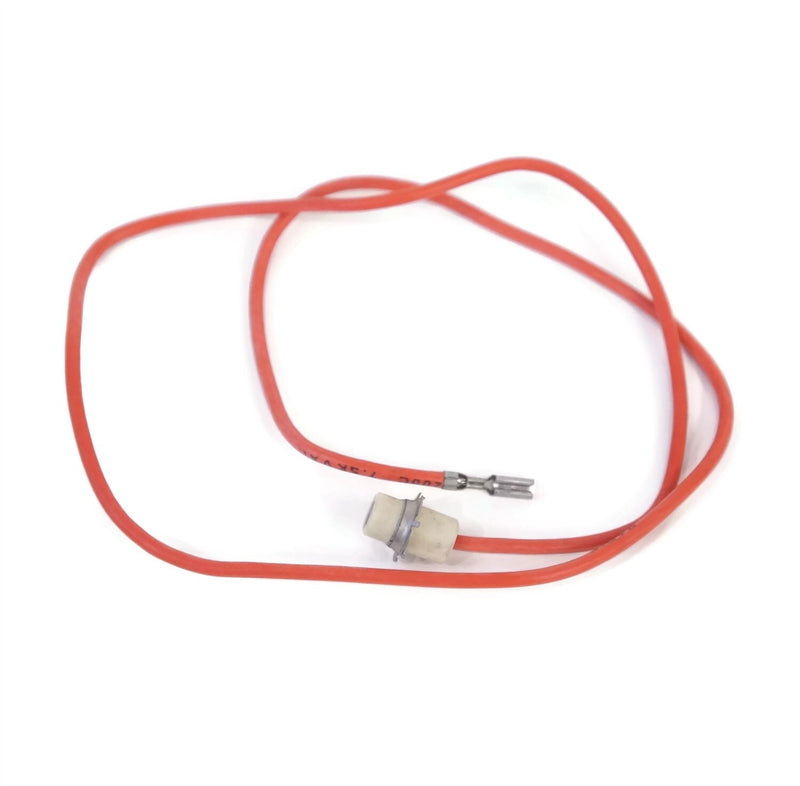

Whirlpool Range Surface Ignitor W11122877 WPW11122877

Range Surface Ignitor – Whirlpool

Whirlpool Range Surface Ignitor W11122877 WPW11122877 This range surface ignitor creates or controls the ignition source needed to light the gas burner safely and consistently. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool W11122877 Range Surface Ignitor Cross Reference Information Part Number W11122877 replaces AP6261081 8053717, W10896687, WP8053717. Product Specifications Brand: Whirlpool Primary SKU: W11122877 Product type: Range Surface Ignitor Application: model-specific range repair Verify connector style, lead length, mounting position, ceramic shape, and burner application Inspect wiring, ground path, and burner ports before replacement Replaces / Cross-Reference Part Numbers W11122877, WPW11122877 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Burner will not ignite delayed or intermittent ignition repeated clicking weak or absent spark cracked ceramic or damaged lead Installation Instructions Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• W11122877
• WPW11122877

Key Features

• Product type: Range Surface Ignitor
• SKU / MPN: W11122877

Fixes These Symptoms

• Burner will not ignite
• delayed or intermittent ignition
• repeated clicking
• weak or absent spark
• cracked ceramic or damaged lead

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition.
