Whirlpool Dryer Lint Filter W11117302 W10685670

Dryer Lint Filter – Whirlpool

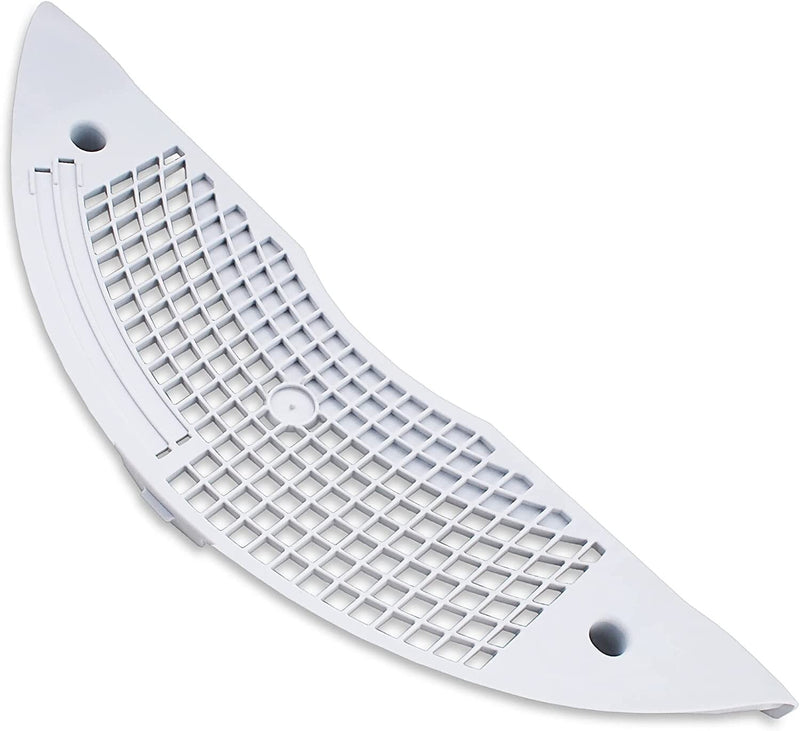

Whirlpool Dryer Lint Filter W11117302 W10685670 This dryer lint filter captures lint or debris while maintaining the airflow required for safe, efficient appliance operation. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM WHIRLPOOL W11117302 W10685670 DRYER LINT SCREEN GRILLE COVER Product Specifications Brand: Whirlpool Primary SKU: W11117302 Product type: Dryer Lint Filter Application: model-specific dryer repair Match frame dimensions, screen material, handle position, airflow direction, and housing fit Clean the filter after each cycle as required and inspect the duct or housing for buildup Replaces / Cross-Reference Part Numbers W11117302, W10685670 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Damaged or torn screen filter will not seat lint bypass restricted airflow long drying time or overheating Installation Instructions Disconnect power if servicing beyond normal user access. Remove the old filter, vacuum loose lint from the accessible housing without damaging sensors, compare the frame and handle orientation, slide the replacement fully into its guide, and confirm it seats flush without restricting airflow. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work or unfamiliar electrical repairs.

Compatible Part Numbers

• W11117302
• W10685670

Key Features

• Product type: Dryer Lint Filter
• SKU / MPN: W11117302

Fixes These Symptoms

• Damaged or torn screen
• filter will not seat
• lint bypass
• restricted airflow
• long drying time or overheating

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power if servicing beyond normal user access. Remove the old filter, vacuum loose lint from the accessible housing without damaging sensors, compare the frame and handle orientation, slide the replacement fully into its guide, and confirm it seats flush without restricting airflow.
