Whirlpool Range Surface Element Control Switch W10434452 WPW10434452

Range Surface Element Control Switch – Whirlpool

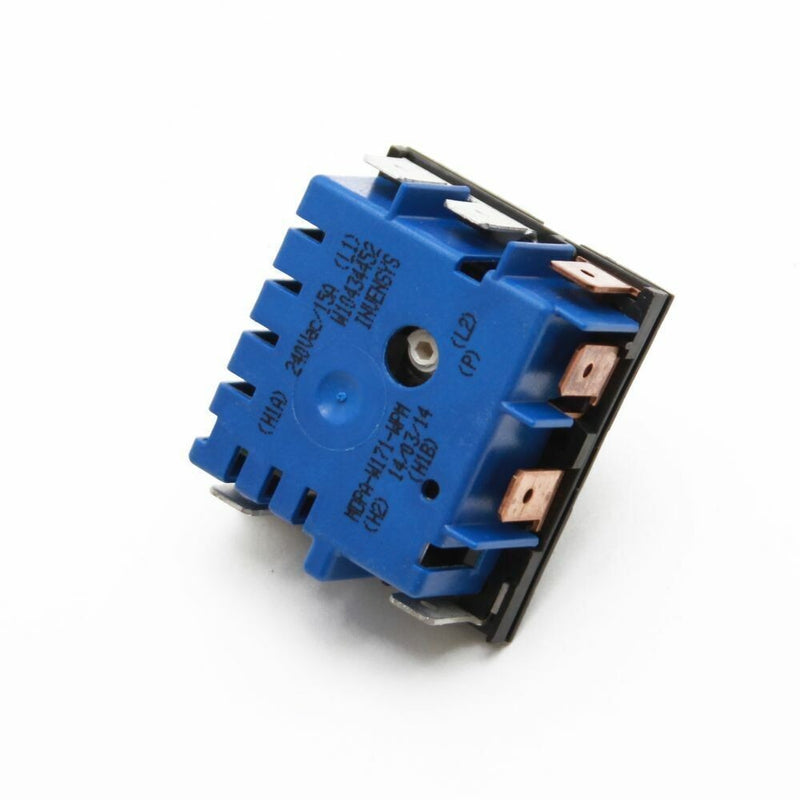

Whirlpool Range Surface Element Control Switch W10434452 WPW10434452 This range surface element control switch converts electrical energy into controlled heat for baking, broiling, surface cooking, or warming. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool W10434452 Range Dual Surface Element Control Switch WPW10434452 USED ON MODELS: 4KAER7685EW0 4KMER7685ES0 4KMER7685EW0 4KWFE7685ES0 4KWFE7685EW0 AER5630BAB0 AER5630BAS0 AER5630BAW0 AER5844VAB1 AER5844VAS1 AER5844VAW1 AER5844VCB1 AER5844VCB2 AER5844VCS1 AER5844VCS2 AER5844VCW1 AER5844VCW2 AER6603SFB0 AER6603SFS0 AER6603SFW0 GFE461LVB1 GFE461LVQ1 GFE461LVS1 GFE461LVT1 IES426AS0 IVE82302 IVE82303 IVP85802 IVP85803 KERS202BBL0 KERS202BSS0 KERS202BSS1 KERS202BWH0 MER6600FB0 MER6600FW0 MER6600FZ0 MER7662WB2 MER7662WB3 MER7662WQ2 MER7662WQ3 MER7662WS2 MER7662WS3 MER7662WW2 MER7662WW3 MER7664XB1 MER7664XB2 MER7664XS1 MER7664XS2 MER7664XW1 MER7664XW2 MER7685BB0 MER7685BS0 MER7685BW0 MER7775WB2 MER7775WS2 MER7775WW2 MER8600DE0 MER8600DH0 MER8600DS0 MER8650ES0 MER8670AB0 MER8670AS0 MER8670AW0 MER8674AB0 MER8674AS0 MER8674AW0 MER8680BB0 MER8680BS0 MER8680BW0 MER8700DB0 MER8700DB1 MER8700DE0 MER8700DE1 MER8700DH0 MER8700DH1 MER8700DS0 MER8700DS1 MER8700DW0 MER8700DW1 MER8800DE0 MER8800DE1 MER8800DH0 MER8800DH1 Product Specifications Brand: Whirlpool Primary SKU: W10434452 Product type: Range Surface Element Control Switch Application: model-specific range repair Verify voltage, wattage where marked, terminal spacing, dimensions, mounting style, and element location Inspect terminals and wiring for heat damage before installation Replaces / Cross-Reference Part Numbers W10434452, WPW10434452 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure No heat or insufficient heat uneven temperature visible blistering or break in the element sparking breaker trips Installation Instructions Disconnect power at the breaker and verify the circuit is de-energized. Let the appliance cool, remove mounting fasteners, support the wires so they cannot fall behind the liner, transfer terminals firmly, secure the element without bending it, restore power, and test at a low setting while monitoring operation. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• W10434452
• WPW10434452

Key Features

• Product type: Range Surface Element Control Switch
• SKU / MPN: W10434452

Fixes These Symptoms

• No heat or insufficient heat
• uneven temperature
• visible blistering or break in the element
• sparking
• breaker trips

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power at the breaker and verify the circuit is de-energized. Let the appliance cool, remove mounting fasteners, support the wires so they cannot fall behind the liner, transfer terminals firmly, secure the element without bending it, restore power, and test at a low setting while monitoring operation.
