Whirlpool Washer Control Board W10160252 WPW10160252 W10205839

Washer Control Board – Whirlpool

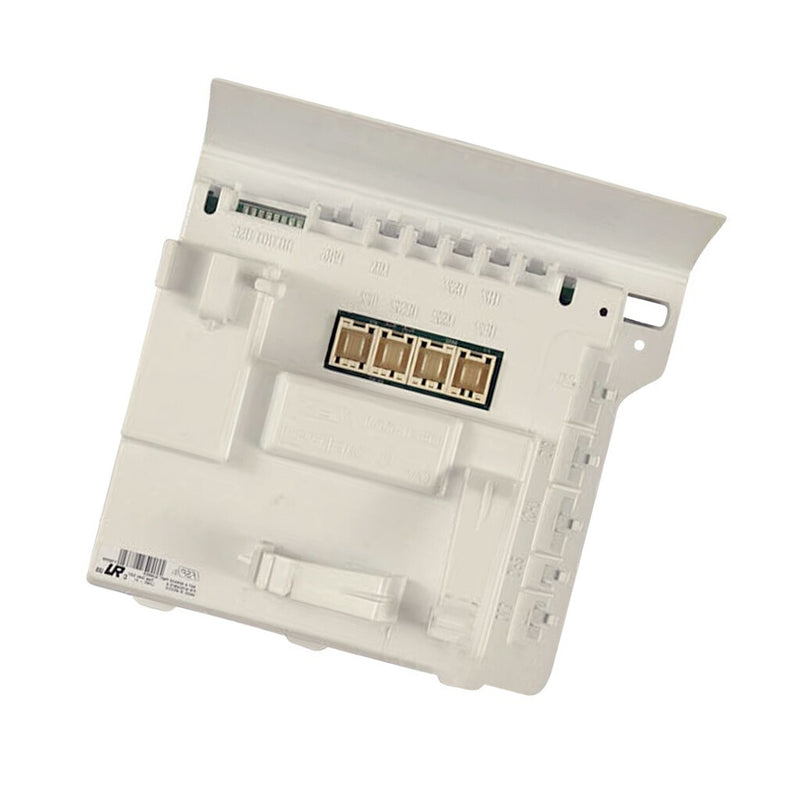

Whirlpool Washer Control Board W10160252 WPW10160252 W10205839 This washer control board supplies or controls electrical power, motor torque, speed, sensing, or cycle operation. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details FITS THE FOLLOWING MODELS: Whirlpool MWFW8300SW01 Washing Machine Whirlpool MWFW8300SW02 Washing Machine Whirlpool WFW8300SW0 Washing Machine Whirlpool WFW8300SW00 Washing Machine Whirlpool WFW8300SW01 Washing Machine Whirlpool WFW8300SW02 Washing Machine Whirlpool WFW8300SW03 Washing Machine Whirlpool WFW8300SW04 Washing Machine Whirlpool WFW8300SW1 Washing Machine Whirlpool WFW8400TB02 Washing Machine Whirlpool WFW8400TE00 Washing Machine Whirlpool WFW8400TE01 Washing Machine Product Specifications Brand: Whirlpool Primary SKU: W10160252 Product type: Washer Control Board Application: model-specific washer repair Verify voltage, capacitance or control rating where marked, connector layout, mounting position, and revision Inspect wiring, terminals, motor brushes, grounding, and the root cause of failure Replaces / Cross-Reference Part Numbers W10160252, WPW10160252, W10205839 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Appliance will not start motor hums or runs intermittently incorrect speed cycle will not advance sparking, overheating, tripped protection, or related fault code Installation Instructions Disconnect power and verify the circuit is de-energized. Photograph and label all wires, discharge capacitors using an approved procedure where applicable, transfer connectors without pulling on conductors, seat brushes or controls in the correct orientation, secure grounding and strain relief, reinstall covers, and perform a monitored functional test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for unfamiliar electrical or mechanical repairs.

Compatible Part Numbers

• W10160252
• WPW10160252
• W10205839

Key Features

• Product type: Washer Control Board
• SKU / MPN: W10160252

Fixes These Symptoms

• Appliance will not start
• motor hums or runs intermittently
• incorrect speed
• cycle will not advance
• sparking
• overheating
• tripped protection
• or related fault code

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and verify the circuit is de-energized. Photograph and label all wires, discharge capacitors using an approved procedure where applicable, transfer connectors without pulling on conductors, seat brushes or controls in the correct orientation, secure grounding and strain relief, reinstall covers, and perform a monitored functional test.
