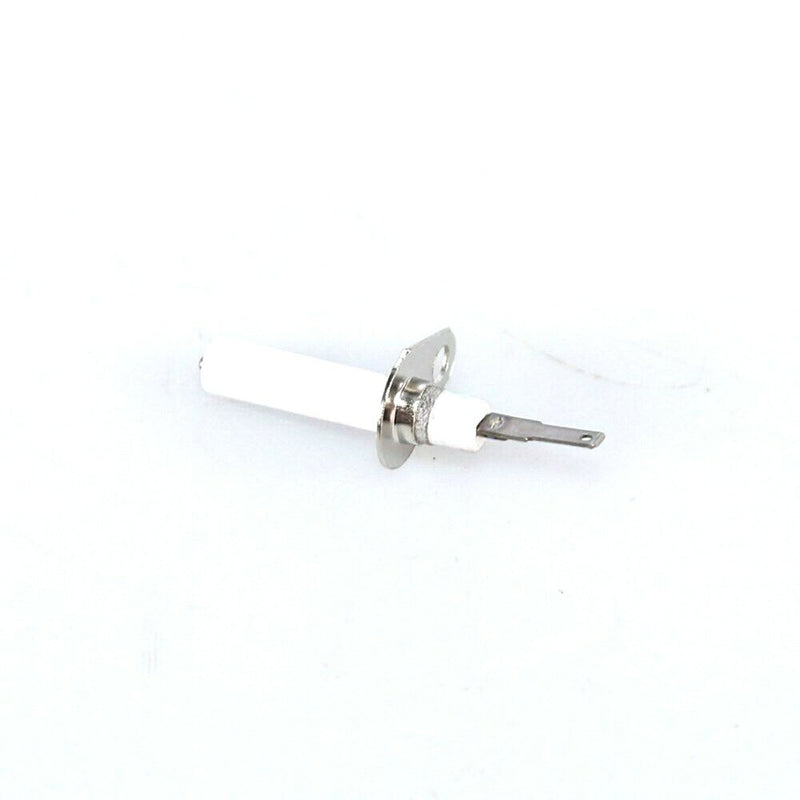

Whirlpool Range Surface Igniter B/O-9754215 O-9754215 WP9754215

Range Surface Igniter – Whirlpool

Whirlpool Range Surface Igniter B/O-9754215 O-9754215 WP9754215 This range surface igniter creates ignition or controlled heat for surface cooking, baking, broiling, or another heating function. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool 9754215 Range Surface Igniter Cross Reference Information Part Number WP9754215 replaces AP6013922 9754215, PS11747153. Product Specifications Brand: Whirlpool Primary SKU: B/O-9754215 Product type: Range Surface Igniter Application: model-specific range repair Verify fuel or voltage application, wattage where marked, connector style, mounting position, dimensions, and burner location Inspect wiring, gas ports, ground path, terminals, and heat shields Replaces / Cross-Reference Part Numbers O-9754215, WP9754215, AP6013922, 9754215, PS11747153 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Burner or element will not heat or ignite delayed or intermittent ignition uneven heat weak spark or glow visible break, hot spot, or cracked ceramic Installation Instructions Disconnect electrical power, shut off gas when applicable, and allow the appliance to cool. Document wiring and burner orientation, transfer connectors carefully, secure the replacement without stressing ceramic or terminals, reinstall shields, restore gas and leak-test disturbed fittings, then restore power and test at a low setting. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system or unfamiliar electrical repairs.

Compatible Part Numbers

• O-9754215
• WP9754215
• AP6013922
• 9754215
• PS11747153

Key Features

• Product type: Range Surface Igniter
• SKU / MPN: B/O-9754215

Fixes These Symptoms

• Burner or element will not heat or ignite
• delayed or intermittent ignition
• uneven heat
• weak spark or glow
• visible break
• hot spot
• or cracked ceramic

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power, shut off gas when applicable, and allow the appliance to cool. Document wiring and burner orientation, transfer connectors carefully, secure the replacement without stressing ceramic or terminals, reinstall shields, restore gas and leak-test disturbed fittings, then restore power and test at a low setting.
