Whirlpool Washer Dispenser 8563865_DRS AP6013296 8563865

Washer Dispenser – Whirlpool

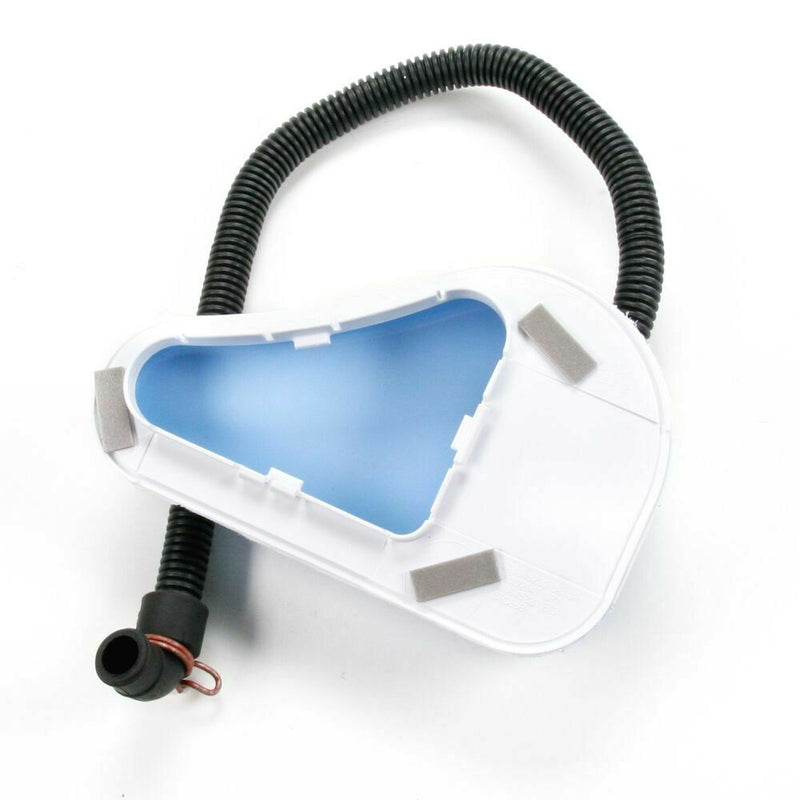

Whirlpool Washer Dispenser 8563865_DRS AP6013296 8563865 This washer dispenser controls, routes, contains, or dispenses water and cleaning products during the washer or dishwasher cycle. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool 8563865 Washer Dispenser and Hose Assembly Part Number WP8563865 replaces AP6013296 8563865, PS11746521. Product Specifications Brand: Whirlpool Primary SKU: 8563865_DRS Product type: Washer Dispenser Application: model-specific washer repair Match port size, hose length, connector orientation, mounting geometry, and sealing surfaces Inspect clamps, seals, filters, wiring, and mating connections Replaces / Cross-Reference Part Numbers AP6013296, 8563865, PS11746521, WP8563865 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Water leak slow or no fill failure to drain incorrect dispensing restricted flow cracked, swollen, loose, or damaged connection Installation Instructions Disconnect power and shut off both water supplies. Protect the floor, relieve pressure and remove standing water, photograph hose and wire routing, transfer clamps and connectors, seat seals squarely, secure the replacement without kinks, restore water first, inspect all joints for leaks, then restore power and run a short monitored cycle. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for unfamiliar electrical or mechanical repairs.

Compatible Part Numbers

• AP6013296
• 8563865
• PS11746521
• WP8563865

Key Features

• Product type: Washer Dispenser
• SKU / MPN: 8563865_DRS

Fixes These Symptoms

• Water leak
• slow or no fill
• failure to drain
• incorrect dispensing
• restricted flow
• cracked
• swollen
• loose
• or damaged connection

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power and shut off both water supplies. Protect the floor, relieve pressure and remove standing water, photograph hose and wire routing, transfer clamps and connectors, seat seals squarely, secure the replacement without kinks, restore water first, inspect all joints for leaks, then restore power and run a short monitored cycle.
