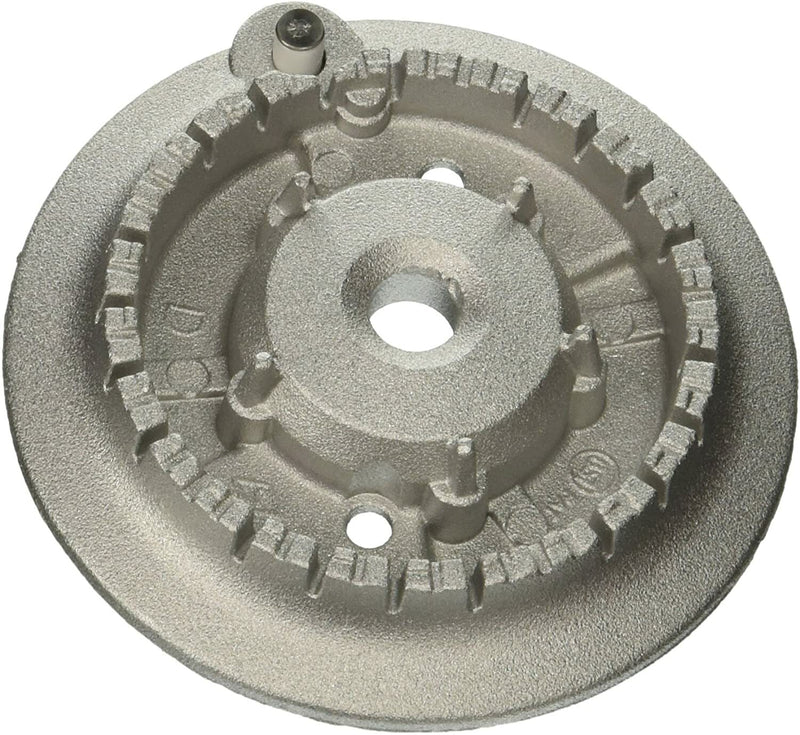

Whirlpool Cooktop Burner Assembly 74007735 AP4098018 1009483

Cooktop Burner Assembly – Whirlpool

Whirlpool Cooktop Burner Assembly 74007735 AP4098018 1009483 This cooktop burner assembly creates ignition or controlled heat for surface cooking, baking, broiling, or another heating function. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool 74007735 Cooktop Burner Assembly Part Number 74007735 replaces AP4098018 1009483, 7505P305-60, AH2085279, EA2085279, PS2085279. Product Specifications Brand: Whirlpool Primary SKU: 74007735 Product type: Cooktop Burner Assembly Application: model-specific cooktop repair Verify fuel or voltage application, wattage where marked, connector style, mounting position, dimensions, and burner location Inspect wiring, gas ports, ground path, terminals, and heat shields Replaces / Cross-Reference Part Numbers 74007735, AP4098018, 1009483, 7505P305-60, AH2085279, EA2085279, PS2085279 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Burner or element will not heat or ignite delayed or intermittent ignition uneven heat weak spark or glow visible break, hot spot, or cracked ceramic Installation Instructions Disconnect electrical power, shut off gas when applicable, and allow the appliance to cool. Document wiring and burner orientation, transfer connectors carefully, secure the replacement without stressing ceramic or terminals, reinstall shields, restore gas and leak-test disturbed fittings, then restore power and test at a low setting. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system or unfamiliar electrical repairs.

Compatible Part Numbers

• 74007735
• AP4098018
• 1009483
• 7505P305-60
• AH2085279
• EA2085279
• PS2085279

Key Features

• Product type: Cooktop Burner Assembly
• SKU / MPN: 74007735

Fixes These Symptoms

• Burner or element will not heat or ignite
• delayed or intermittent ignition
• uneven heat
• weak spark or glow
• visible break
• hot spot
• or cracked ceramic

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power, shut off gas when applicable, and allow the appliance to cool. Document wiring and burner orientation, transfer connectors carefully, secure the replacement without stressing ceramic or terminals, reinstall shields, restore gas and leak-test disturbed fittings, then restore power and test at a low setting.
