Whirlpool Oven Thermal Fuse 4456654

Oven Thermal Fuse – Whirlpool

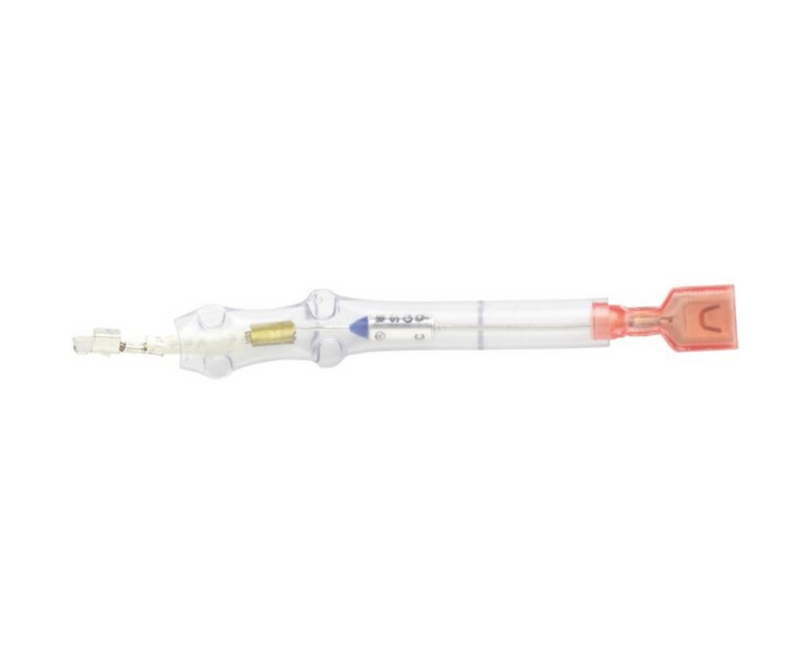

Whirlpool Oven Thermal Fuse 4456654 This oven thermal fuse monitors or controls temperature, power, timing, or a safety circuit within the appliance. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details OEM Whirlpool 4456654 Oven Thermal Fuse This 248 degree fahrenheit nonresettable inline oven thermal fuse is located in the vent area. The two terminals have a plug and a 1/4 inch insulated female spade terminal which may appear different from the original. For the 230F thermal fuse with the two insulated female terminals 3/16 inch and 1/4 inch order WP4451042. Part Number WP4456654 replaces AP6009502 4456654, 4450815, 4451041, PS11742665. Product Specifications Brand: Whirlpool Primary SKU: 4456654 Product type: Oven Thermal Fuse Application: model-specific oven repair Verify electrical rating, connector layout, mounting style, control position, and revision Compare every terminal marking and wire location with the original Replaces / Cross-Reference Part Numbers 4456654 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure No heat or incorrect temperature intermittent operation control will not respond appliance shuts down unexpectedly fault code or open safety circuit Installation Instructions Disconnect power at the breaker. Photograph and label all wire positions, access the control area, transfer connectors one at a time without pulling on wires, secure the replacement and any sensor routing exactly as designed, reinstall covers, restore power, and perform the applicable functional test. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• 4456654

Key Features

• Product type: Oven Thermal Fuse
• SKU / MPN: 4456654

Fixes These Symptoms

• No heat or incorrect temperature
• intermittent operation
• control will not respond
• appliance shuts down unexpectedly
• fault code or open safety circuit

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect power at the breaker. Photograph and label all wire positions, access the control area, transfer connectors one at a time without pulling on wires, secure the replacement and any sensor routing exactly as designed, reinstall covers, restore power, and perform the applicable functional test.
