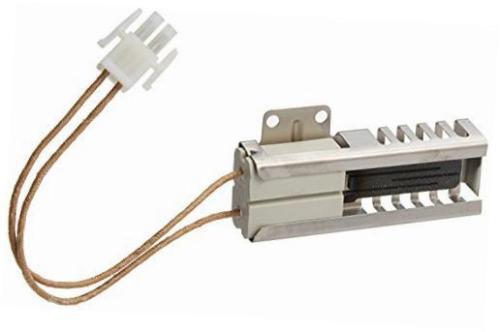

Whirlpool Oven Igniter 12400035

Oven Igniter – Whirlpool

Whirlpool Oven Igniter 12400035 This oven igniter creates or controls the ignition source needed to light the gas burner safely and consistently. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details Whirlpool 12400035 Kenmore Maytag Oven Ignitor Cross Reference Information Part Number 12400035 replaces AP4012072, 14200118, 1482-224, 1482-225, 1482224, 1482225, 3377, 41-205, 41-207, 5-50735, 5-51003, 5-51207, 5-51291, 54099H05, 550735, 551003, 551207, 551291, 7-90023, 7-90401, 7432P025-60, 7432P025-60K, 7432P026-60, 7432P051-50K, 7432P051-60, 7432P051-60K, 7432P052-60, 7432P052-60K, 7432P062-60, 7432P064-60, 7432P066-60, 7432P067-60, 7432P076-60, 790023, 790401, AH1573892, AP205016, EA1573892, F17-036, GR407, GR409, IGN5, IGN6, P205-013, P205-016, P205-017, P205-034, P205-036, PS1573892, TJERIG35, W10125528, W10127324, B00DM8J2M4, B008DJVR6Q, B008DJJTH0, B008DJXAWK, B008DJX2B4, B008DK505O, B008DJO3BC, B008DK0GSK, B008DJWETA, B008DJQVNU, B008DK5IA6, B003N6H78G, B008DK5KAE, B00MH4FEYE, B00MH4FBZ6, B00MH4EX1Y, B00MH4EW6K, B00MH4EZVC, B0156NBXIS, B00MH4FJSK, B00MH4F354, B008DJQV4Y, B008DK5CWA, B008DJM9D6, B008DK5GQM, B008DK5H20, B008DK5IYW, B008DK5M84, B008DK5GJE. Product Specifications Brand: Whirlpool Primary SKU: 12400035 Product type: Oven Igniter Application: model-specific oven repair Verify connector style, lead length, mounting position, ceramic shape, and burner application Inspect wiring, ground path, and burner ports before replacement Replaces / Cross-Reference Part Numbers 12400035 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Burner will not ignite delayed or intermittent ignition repeated clicking weak or absent spark cracked ceramic or damaged lead Installation Instructions Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• 12400035

Key Features

• Product type: Oven Igniter
• SKU / MPN: 12400035

Fixes These Symptoms

• Burner will not ignite
• delayed or intermittent ignition
• repeated clicking
• weak or absent spark
• cracked ceramic or damaged lead

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition.
