Whirlpool Refrigerator Compressor Start Relay 12002782 AP4009659 1194680 61005518

Refrigerator Compressor Start Relay – Whirlpool

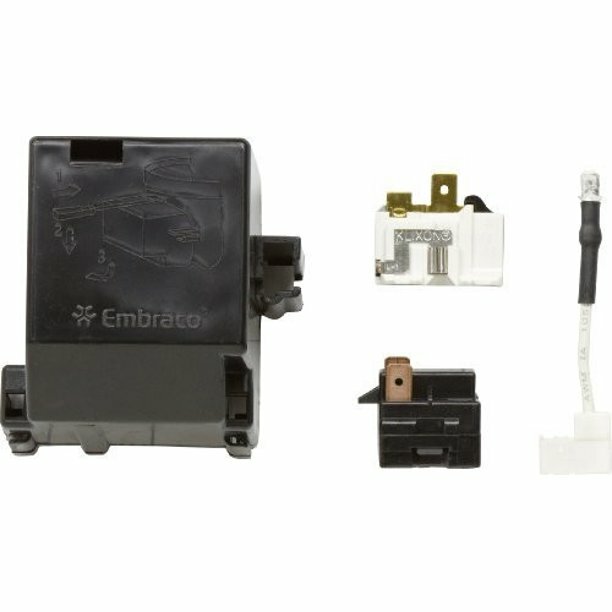

Genuine OEM Whirlpool 12002782 Refrigerator Relay Overload Kit replacement part for select Whirlpool-family refrigerators.

Compatible Part Numbers

• 12002782
• AP4009659
• 1194680
• 61005518
• AH2004057
• EA2004057
• PS2004057

Key Features

• Product type: Refrigerator Compressor Start Relay
• SKU / MPN: 12002782
• Compatible with select Whirlpool-family refrigerators that specify 12002782. Verify the complete appliance model number before ordering.

Fixes These Symptoms

• Appliance does not start
• heat
• cool
• defrost
• dispense
• or cycle correctly
• intermittent operation
• error code
• repeated clicking
• component tests open
• shorted
• or outside specification.

Compatible Brands

• Whirlpool
• KitchenAid
• Maytag
• Amana
• JennAir
• Roper
• Norge
• Kenmore
• Sears

Always verify your complete appliance model number before ordering.

Installation Guidance

Unplug the refrigerator and protect food. Shut off the water supply when servicing water or ice components. Document wiring, tubing, and orientation, support doors or drawers before removing hardware, replace seals or retainers as required, restore utilities, check for leaks, and verify normal operation.
