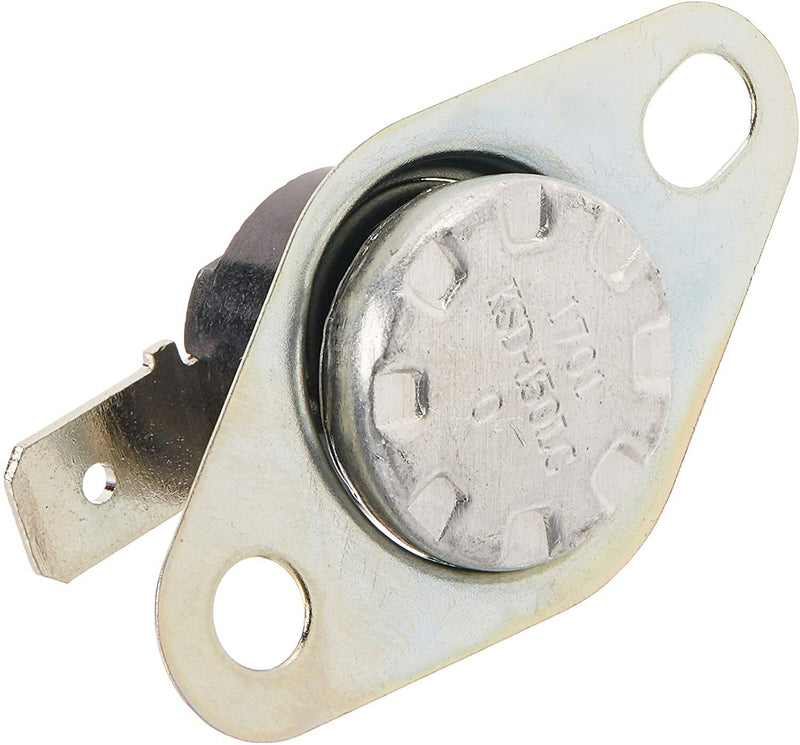

Samsung Range Thermostat DE47-20037A

Range Thermostat – Samsung

Samsung Range Thermostat DE47-20037A This range thermostat monitors, switches, protects, or controls the related range circuit. It is intended as a direct replacement for the designated service part. Verify the complete appliance model and serial number, original part number, dimensions, connector or mounting details, and revision before ordering. Part-Specific Details OEM Samsung DE47-20037A Range Thermostat Part Number DE47-20037A replaces AP4222778 2079753, PS4226434. Brand New Item Product Specifications Brand: Samsung Primary SKU: DE47-20037A Product type: Range Thermostat Application: model-specific range repair Verify dimensions, connector or mounting geometry, orientation, and revision against the original Electrical rating, terminal layout, and control revision must match the original Replaces / Cross-Reference Part Numbers DE47-20037A Cross-reference numbers may identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Appliance does not start, heat, cool, fill, drain, or cycle correctly intermittent operation error code component tests open, shorted, or outside specification Installation Instructions Disconnect electrical power and shut off the gas supply when applicable. Allow all surfaces to cool, document wiring and burner orientation, and install the replacement without blocking ports or forcing fasteners. Gas connections and burner performance should be checked by a qualified technician. Compatibility and Safety Confirm fit using the appliance rating label and Samsung parts diagram. Disconnect power and shut off water or gas when applicable. Wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas systems, sealed refrigeration, or unfamiliar electrical work.

Compatible Part Numbers

• DE47-20037A

Key Features

• Product type: Range Thermostat
• SKU / MPN: DE47-20037A

Fixes These Symptoms

• Appliance does not start
• heat
• cool
• fill
• drain
• or cycle correctly
• intermittent operation
• error code
• component tests open
• shorted
• or outside specification.

Compatible Brands

• Samsung

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power and shut off the gas supply when applicable. Allow all surfaces to cool, document wiring and burner orientation, and install the replacement without blocking ports or forcing fasteners. Gas connections and burner performance should be checked by a qualified technician.
