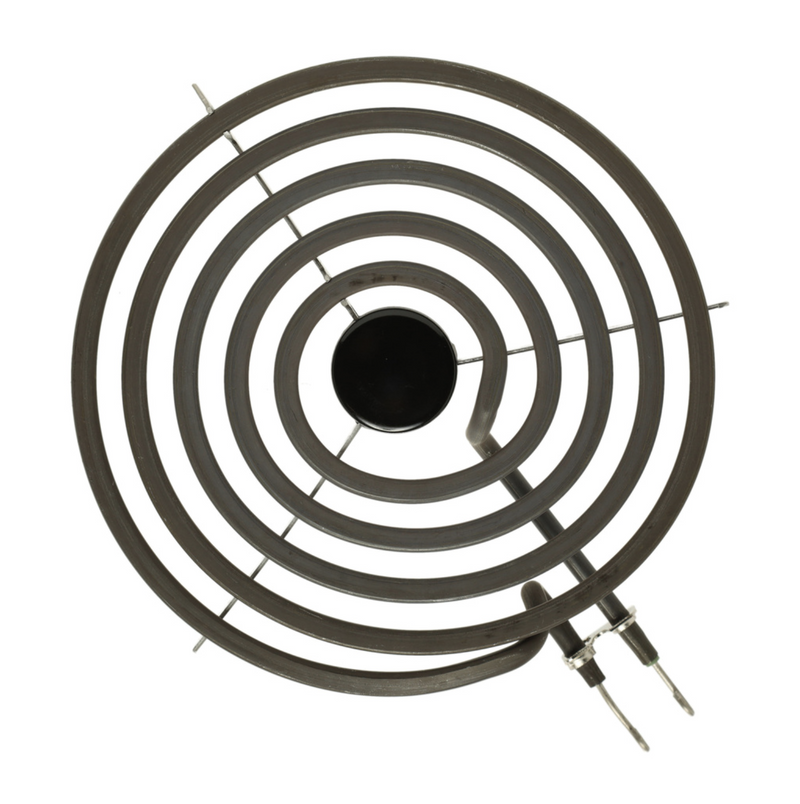

Frigidaire 316442301 Range 8-Inch Large Coil Surface Element

Range 8-Inch Large Coil Surface Element – Frigidaire

The 8-inch coil surface element is the large burner coil on your Frigidaire electric range or stovetop, responsible for generating the heat used for cooking. Regular use and normal wear and tear can cause the element to burn out, heat unevenly, or stop working entirely. This direct-replacement coil surface element restores full heating performance to the large burner position and requires no tools to install.

Compatible Part Numbers

• 316442301
• AP4356467
• PS2339242
• AH2339242
• EA2339242
• 5303310282
• 5303325552
• 5303325555
• 318372204
• 318372214
• 316265500
• 8002901
• 8003118

Key Features

• Direct OEM-spec replacement – engineered to Frigidaire factory specifications for a precise fit in the large burner receptacle
• 8-inch coil diameter – correct size for the large surface element position on compatible ranges
• Restores full burner heat output – eliminates uneven heating, no-heat, or intermittent burner failures
• Tool-free installation – grasp the old element and pull outward to remove; press the new element firmly into the receptacle to install

Fixes These Symptoms

• Large burner not heating or producing no heat
• Surface element heating unevenly or only partially
• Coil element visibly burned, broken, or warped
• Burner sparking, arcing, or tripping the breaker

Compatible Brands

• Frigidaire, Electrolux, Kenmore, Gibson, Crosley, Westinghouse, Universal, Montgomery Wards

Always verify your model number before ordering. Check the label on the back of your range to confirm compatibility.
