Whirlpool Oven Spark Module W11590249

Oven Spark Module – Whirlpool

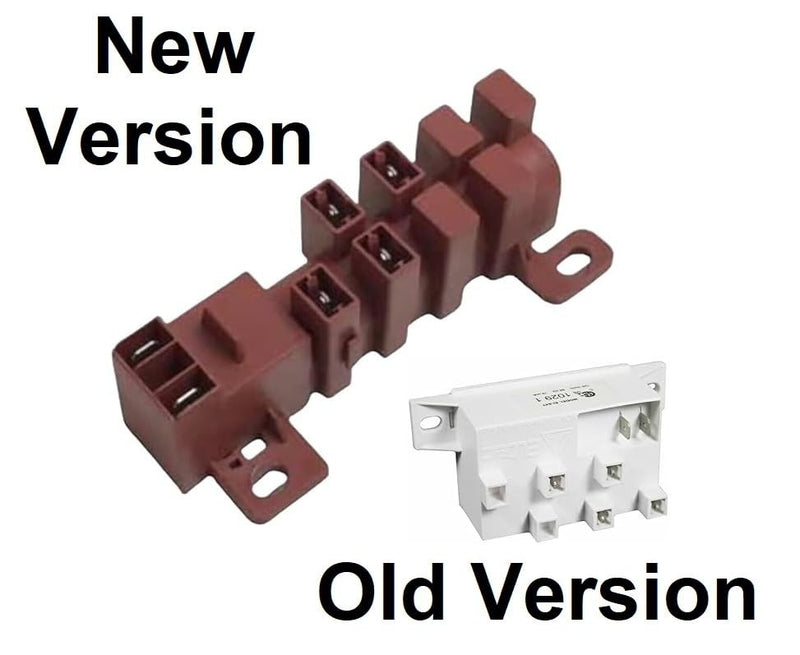

Whirlpool Oven Spark Module W11590249 This oven spark module creates or controls the ignition source needed to light the gas burner safely and consistently. It is intended as a model-specific replacement for the service part listed below. Confirm the complete appliance model and serial number before ordering. Part-Specific Details The product is a new genuine OEM Whirlpool oven range spark module with the model number W11590249. This spark module is designed to provide a spark to ignite the oven, ensuring proper function when cooking. Specifically designed for Whirlpool appliances, this spark module is a reliable replacement part to ensure your oven continues to operate efficiently. Product Specifications Brand: Whirlpool Primary SKU: W11590249 Product type: Oven Spark Module Application: model-specific oven repair Verify connector style, lead length, mounting position, ceramic shape, and burner application Inspect wiring, ground path, and burner ports before replacement Replaces / Cross-Reference Part Numbers W11590249 Cross-reference numbers can identify earlier revisions, distributor references, or approved service replacements. Compatibility can vary by production date and model revision. Symptoms of Failure Burner will not ignite delayed or intermittent ignition repeated clicking weak or absent spark cracked ceramic or damaged lead Installation Instructions Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition. Compatibility and Safety Confirm fit using the appliance rating label and Whirlpool-family parts diagram. Disconnect power and shut off water or gas when applicable, wear suitable protective equipment, preserve all shields and guards, and use a qualified technician for gas-system work, or unfamiliar electrical repairs.

Compatible Part Numbers

• W11590249

Key Features

• Product type: Oven Spark Module
• SKU / MPN: W11590249

Fixes These Symptoms

• Burner will not ignite
• delayed or intermittent ignition
• repeated clicking
• weak or absent spark
• cracked ceramic or damaged lead

Compatible Brands

• Whirlpool

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power and shut off the gas supply. Allow the appliance to cool, document wire routing, remove the burner components needed for access, transfer one connection at a time, secure the igniter without stressing the ceramic, reassemble all shields, restore gas, leak-test disturbed fittings, then restore power and test ignition.
