Whirlpool Dishwasher Diverter Motor Seal Grommet W10195677 WPW10195677

Dishwasher Diverter Motor Seal Grommet – Whirlpool

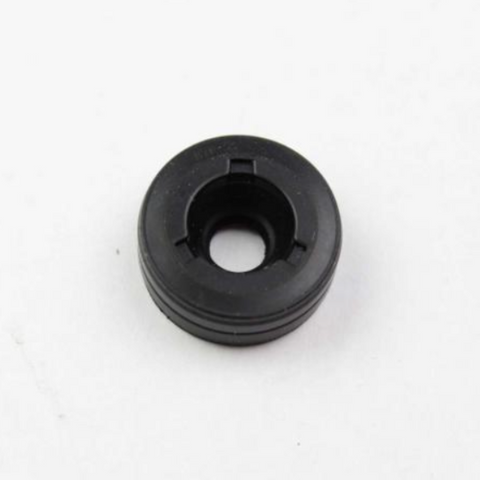

Whirlpool Dishwasher Diverter Motor Seal Grommet W10195677 WPW10195677 This rubber grommet seals the dishwasher diverter-motor shaft where it passes through the sump or pump housing. It helps prevent water leakage while allowing the diverter to route wash water between spray zones. Product Specifications Brand: Whirlpool Primary SKU: W10195677-DRS_AMZ OEM reference: WPW10195677 / W10195677 Product type: Dishwasher Diverter Motor Seal Grommet Material: flexible rubber sealing compound with internal shaft seal Location: dishwasher sump/diverter motor interface Application: compatible Whirlpool, KitchenAid, Maytag, Jenn-Air, and Kenmore dishwashers; verify model Replaces / Cross-Reference Part Numbers W10195677-DRS_AMZ, W10195677, WPW10195677, AP6016787, PS11750080, 4442132, W10195076, W10476222, W10537869, W10849439 Symptoms of Failure Water leaking beneath the dishwasher near the sump or diverter motor water pooling under the unit reduced spray-arm pressure dishes clean poorly on one rack visible cracking, hardening, deformation, or leakage around the diverter shaft. Installation Instructions Disconnect electrical power and shut off the water supply. Remove the lower rack and spray-arm or sump components required for access, following the model-specific service manual. Remove standing water, document component orientation, expose the diverter motor shaft, remove the old grommet without damaging the sump bore, clean and dry the sealing surface, press the new seal squarely and fully into its seat, reinstall the diverter and sump components, restore water, inspect underneath for leaks, then restore power and run a monitored cycle. Compatibility and Safety Confirm the complete dishwasher model number and sump revision. Some later models require replacement of the sump assembly rather than the individual seal. Disconnect power and water before service and verify the repair is leak-free before unattended use.

Compatible Part Numbers

• W10195677-DRS_AMZ
• W10195677
• WPW10195677
• AP6016787
• PS11750080
• 4442132
• W10195076
• W10476222
• W10537869
• W10849439

Key Features

• Product type: Dishwasher Diverter Motor Seal Grommet
• SKU / MPN: W10195677-DRS_AMZ

Fixes These Symptoms

• Water leaking beneath the dishwasher near the sump or diverter motor
• water pooling under the unit
• reduced spray-arm pressure
• dishes clean poorly on one rack
• visible cracking
• hardening
• deformation
• or leakage around the diverter shaft.

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana
• Jenn-Air
• Roper
• Kenmore

Always verify your complete appliance model number before ordering.

Installation Guidance

Disconnect electrical power and shut off the water supply. Remove the lower rack and spray-arm or sump components required for access, following the model-specific service manual. Remove standing water, document component orientation, expose the diverter motor shaft, remove the old grommet without damaging the sump bore, clean and dry the sealing surface, press the new seal squarely and fully into its seat, reinstall the diverter and sump components, restore water, inspect underneath for leaks, then restore power and run a monitored cycle.
