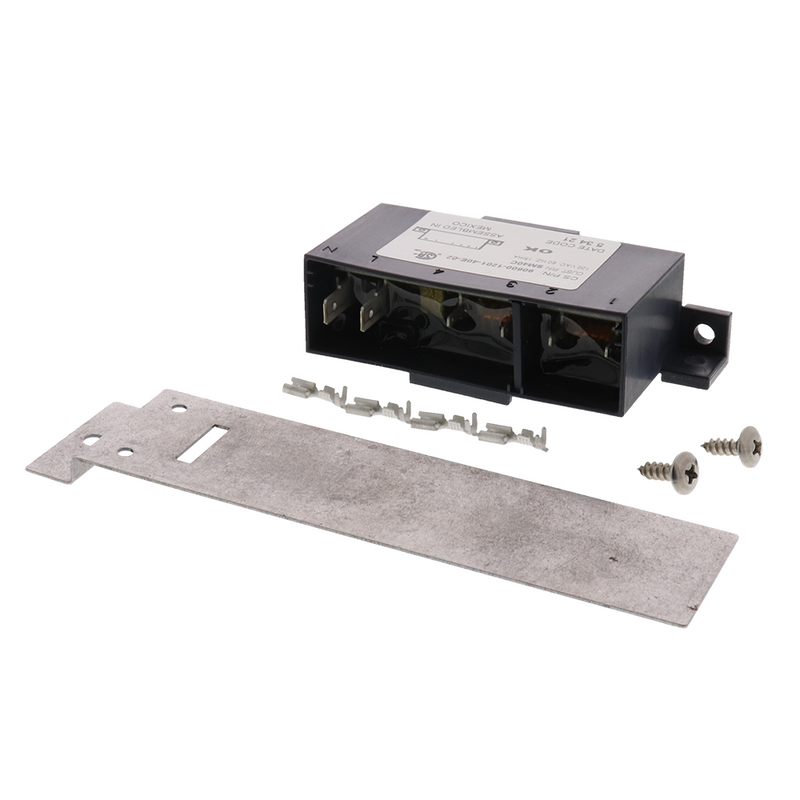

Gas Range Spark Module Kit For: Whirlpool 12001596, AP4010034, PS2003170, 7431P017-60

Gas Range Spark Module Kit For: Whirlpool 12001596, AP4010034, PS2003170, 7431P017-60

ERP ER12001596 is an aftermarket gas-range spark module kit for selected Whirlpool applications. It provides ignition-control output for compatible burner systems when burners click without producing spark, ignition is intermittent, or the original module is cracked or heat-damaged. This is an ERP aftermarket replacement and is not represented as a genuine Whirlpool-manufactured module. Verify the complete range model, original part number, terminal layout, wire positions, and module specifications before ordering.

Compatible Part Numbers

• 12001596 (OEM reference)
• AP4010034
• PS2003170
• 7431P017-60
• ER12001596 (ERP reference/SKU)

Key Features

• Aftermarket replacement: Replaces compatible Whirlpool 12001596 spark-module applications.
• Ignition control: Supports spark generation for compatible gas-range burner systems.
• Service matching: Confirm terminal layout, wire positions, voltage, and module specifications before installation.
• Repair benefit: Helps restore consistent burner ignition after the module and related circuit are properly diagnosed.

Fixes These Symptoms

• Burners click but do not spark.
• No ignition or intermittent ignition.
• Spark module is cracked or heat-damaged.
• Ignition circuit has been diagnosed with a failed module.

Compatible OEM Brands

Whirlpool

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation and Safety

Gas and electrical appliance work must be performed by a qualified technician. Disconnect electrical power and shut off the gas supply before access. Photograph wire positions, transfer wires only to matching terminals, secure the module in the original location, reinstall covers and guards, and test each burner for consistent ignition and safe operation. Do not bypass safety controls or improvise gas conversions.

Disclosure

WARNING: Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Always verify your complete appliance model number before ordering.
