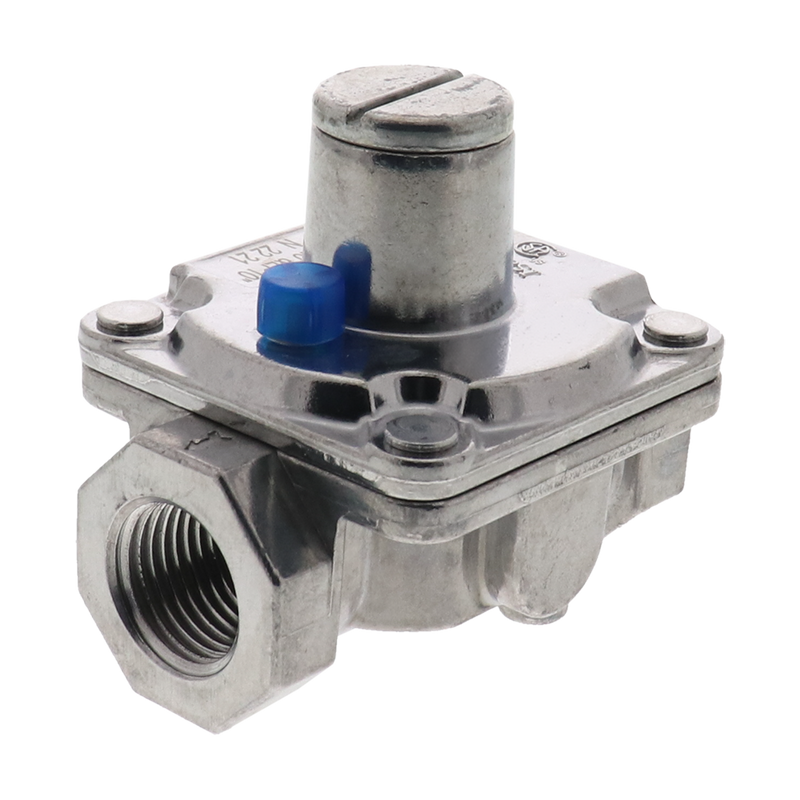

ERP ERPR1 Range Gas Pressure Regulator | Replaces 74006282

Gas Range Pressure Regulator 1/2 x 1/2 NPT 4-in NG/10-in LP For: Whirlpool, Maytag 74006282, ERPR1

ERP ERPR1 is an aftermarket convertible gas pressure regulator for compatible Whirlpool and Maytag range and appliance gas systems. This 1/2-inch x 1/2-inch NPT regulator is designed for natural gas or LP applications, with a 4-inch NG and 10-inch LP spring range. It can help correct unstable burner pressure, poor flame performance, delayed ignition, or gas-system operation affected by a worn regulator. This is an aftermarket replacement reference for compatible Whirlpool and Maytag applications, not a genuine OEM part.

Compatible Part Numbers

• 74006282 (OEM reference)
• ERPR1 (ERP aftermarket reference)

Key Features

• Convertible regulator: Supports compatible natural-gas and LP appliance applications.
• Connection size: Uses 1/2-inch x 1/2-inch NPT connections.
• Pressure range: 4-inch NG and 10-inch LP spring range with a 4-inch outlet setting.
• Capacity: Rated for up to 40,000 BTU with fixed-orifice applications and up to 125,000 BTU for burner and pilot loads when properly matched.

Fixes These Symptoms

• Range burner flame is weak, unstable, or uneven.
• Gas appliance has delayed ignition or inconsistent burner performance.
• Regulator leaks, vents improperly, or shows physical damage.
• Existing regulator is the wrong gas type, pressure, or connection size.

Compatible OEM Brands

Whirlpool, Maytag

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation and Safety

Shut off the gas supply and disconnect electrical power before service. Confirm the appliance gas type, inlet and outlet pressure, BTU requirements, connection size, flow direction, and venting requirements. Use approved gas-rated sealant where appropriate, tighten without over-stressing the housing, restore gas slowly, and test every connection for leaks with an approved leak-detection method. A qualified gas-appliance technician must perform or verify the installation.

Disclosure

WARNING: Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Always verify the complete appliance model number and gas requirements before ordering.
