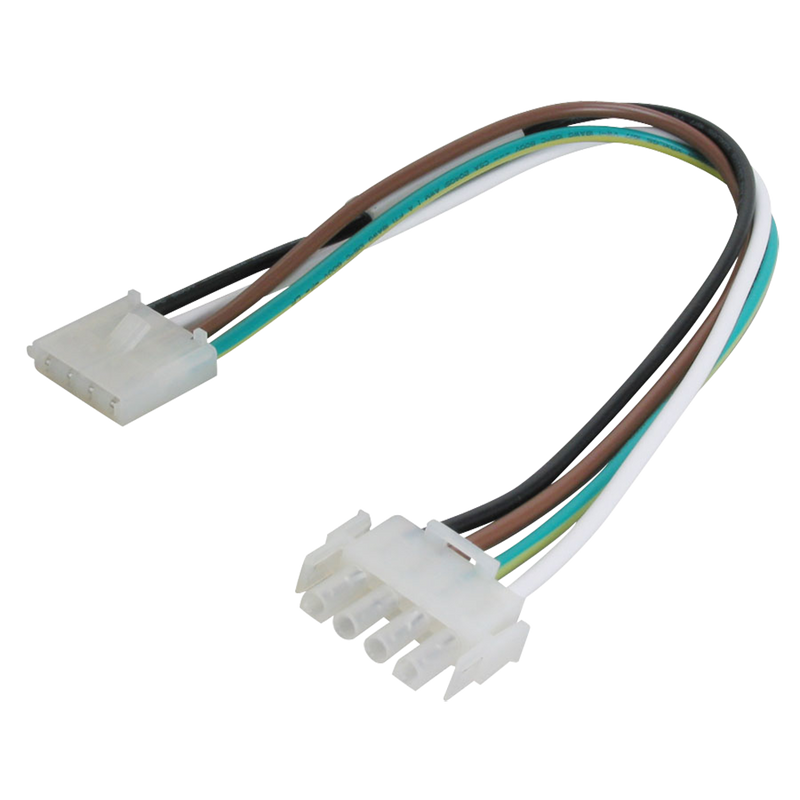

Refrigerator Ice Maker Wire Harness for Whirlpool D7813010 ERP

Refrigerator Ice Maker Wire Harness – Whirlpool

This ice maker wire harness connects the refrigerator ice maker components to the appliance wiring system. A damaged or loose harness can cause intermittent operation or prevent the ice maker from functioning. This ERP harness is a direct replacement for compatible Whirlpool applications.

Compatible Part Numbers

• D7813010
• ERD7813010

Key Features

• Direct replacement: Replaces the listed ice maker wire harness number on compatible refrigerator models.
• Primary function: Provides the electrical connection for the ice maker assembly.
• Key benefit: Helps restore reliable ice maker operation when the original harness is damaged or faulty.
• Installation ease: Designed for model-specific installation using the original routing and connections.

Fixes These Symptoms

• Ice maker does not operate
• Intermittent ice maker operation
• Loose or damaged wiring at the ice maker
• Ice production stops unexpectedly

Compatible Brands

• Whirlpool

Disconnect electrical power before installation. Record the original routing and connector positions, use approved connections only, reinstall guards, and complete the prescribed functional check after reassembly.

Always verify your model number before ordering. Check the label inside the refrigerator to confirm compatibility.
