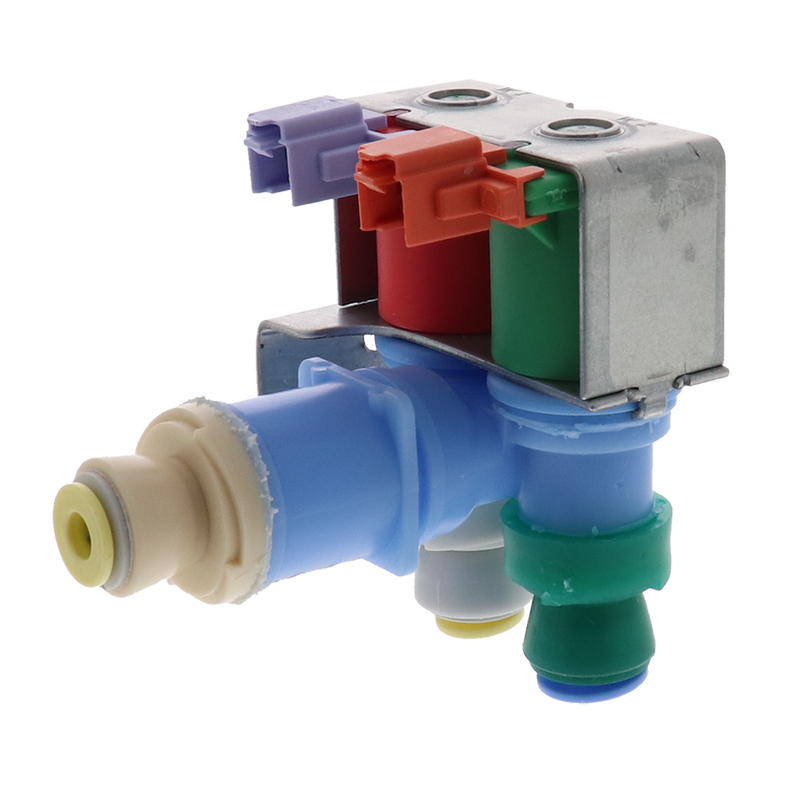

Refrigerator Ice Water Valve For: Whirlpool Amana KitchenAid Maytag W11645245 AP7208917 K-79524 OEM21626756 PS16875686 W11446818 W11546685 W11563296 ERW11645245

Refrigerator Ice Water Valve For: Whirlpool Amana KitchenAid Maytag W11645245 AP7208917 K-79524 OEM21626756 PS16875686 W11446818 W11546685 W11563296 ERW11645245

This refrigerator icemaker and dispenser water valve is a direct replacement for appliances using W11645245 and the verified replacement numbers below. It controls water flow to the ice maker and dispenser. The verified specification has two solenoid coils, a yellow 35W coil and green 20W coil, both 120V. The yellow and inlet connections are 1/4 inch, while the green connection is 5/16 inch. A failing valve can cause no fill, slow ice production, weak dispenser flow, or leaks.

Compatible Part Numbers

• W11645245
• AP7208917
• K-79524
• OEM21626756
• PS16875686
• W11446818
• W11546685
• W11563296

Key Features

• Direct replacement: Replaces verified valve references including W11645245.
• Primary function: Controls refrigerator water flow to the ice maker and dispenser.
• Key benefit: Two 120V solenoid coils, rated yellow 35W and green 20W, match the verified configuration.
• Installation ease: Designed for replacement when the original valve, tubing, connectors, and refrigerator model match.

Fixes These Symptoms

• Ice maker or dispenser does not fill.
• Ice production is slow or stops.
• Dispenser water flow is weak or irregular.
• Water leaks from the valve area.

Compatible Brands

• Whirlpool
• Amana
• KitchenAid
• Maytag

Compatible Models

Verified applications include specific Whirlpool-manufactured refrigerator makes and models, including Amana, KitchenAid, and Maytag applications. Model fitment is not exhaustive. Fits various models. Please verify compatibility with us before ordering.

Installation Instructions

Verify the complete refrigerator model and original part number before installation. Disconnect electrical power, shut off the water supply, and follow the model-specific service manual. Photograph tubing and connector positions, protect the work area from residual water, replace damaged seals, and inspect fittings before reassembly. Restore utilities only after installation and check carefully for leaks.

Aftermarket replacement supplied through ERP; not represented as manufactured by the original appliance maker. OEM brand names and part numbers are used only to identify compatibility.

Always verify your model number before ordering. Check the label inside the refrigerator to confirm compatibility.
