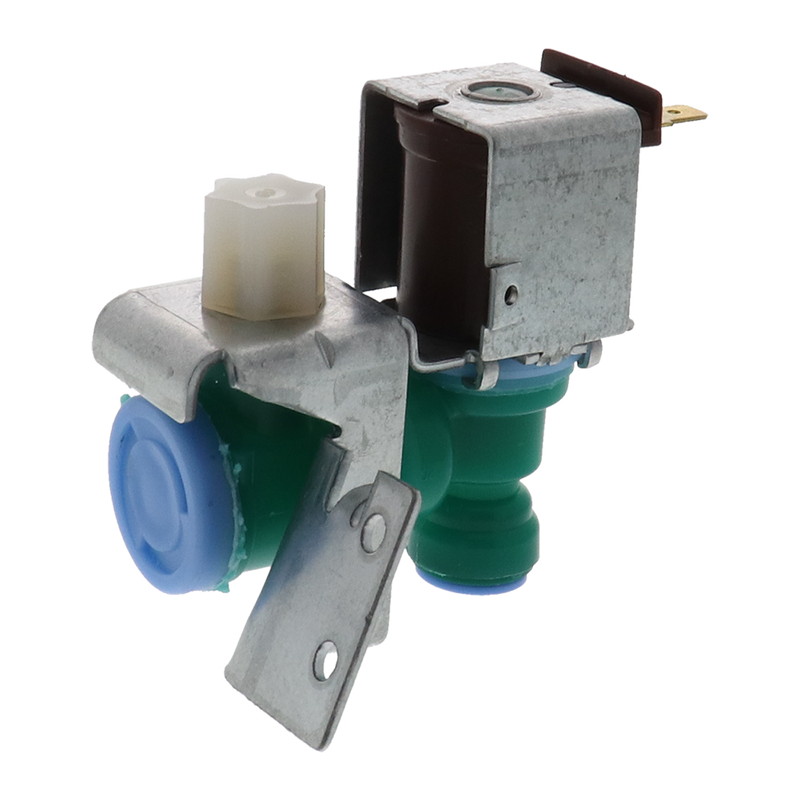

Refrigerator Icemaker Water Inlet Valve For: Whirlpool KitchenAid Maytag W11512399 W11451511 K-79377 AP6997670 PS16543415 ERW11512399

Refrigerator Icemaker Water Inlet Valve For: Whirlpool KitchenAid Maytag W11512399 W11451511 K-79377 AP6997670 PS16543415 ERW11512399

This refrigerator icemaker water inlet valve is a direct replacement for appliances using W11512399 and the verified replacement numbers below. It controls water flow to the ice maker. The verified specification is a 20W, 120V coil with a 1/4-inch compression inlet and 5/16-inch push-on outlet. A failing valve can cause an ice maker that does not fill, slow ice production, irregular water flow, or leaks.

Compatible Part Numbers

• W11512399
• W11451511
• K-79377
• AP6997670
• PS16543415

Key Features

• Direct replacement: Replaces verified valve references including W11512399.
• Primary function: Controls incoming water flow to the refrigerator ice maker.
• Key benefit: Matches the verified 20W, 120V coil and 1/4-inch compression inlet by 5/16-inch push-on outlet configuration.
• Installation ease: Designed for replacement when the original valve, tubing, connectors, and refrigerator model match.

Fixes These Symptoms

• Ice maker does not fill with water.
• Ice production is slow or stops.
• Water flow to the ice maker is irregular.
• Water leaks from the inlet valve area.

Compatible Brands

• Whirlpool
• KitchenAid
• Maytag

Compatible Models

Verified applications include specific Whirlpool refrigerator makes and models, including KitchenAid and Maytag applications. Model fitment is not exhaustive. Fits various models. Please verify compatibility with us before ordering.

Installation Instructions

Verify the complete refrigerator model and original part number before installation. Disconnect electrical power, shut off the water supply, and follow the model-specific service manual. Photograph tubing and connector positions, protect the work area from residual water, replace damaged seals, and inspect fittings before reassembly. Restore utilities only after installation and check carefully for leaks.

Aftermarket replacement supplied through ERP; not represented as manufactured by the original appliance maker. OEM brand names and part numbers are used only to identify compatibility.

Always verify your model number before ordering. Check the label inside the refrigerator to confirm compatibility.
