Dryer Thermal Fuse For: Whirlpool Maytag Kenmore Crosley W10909685 AP6034383 4461025 PS11766766 W10693363 W10909685

Dryer Thermal Fuse For: Whirlpool Maytag Kenmore Crosley

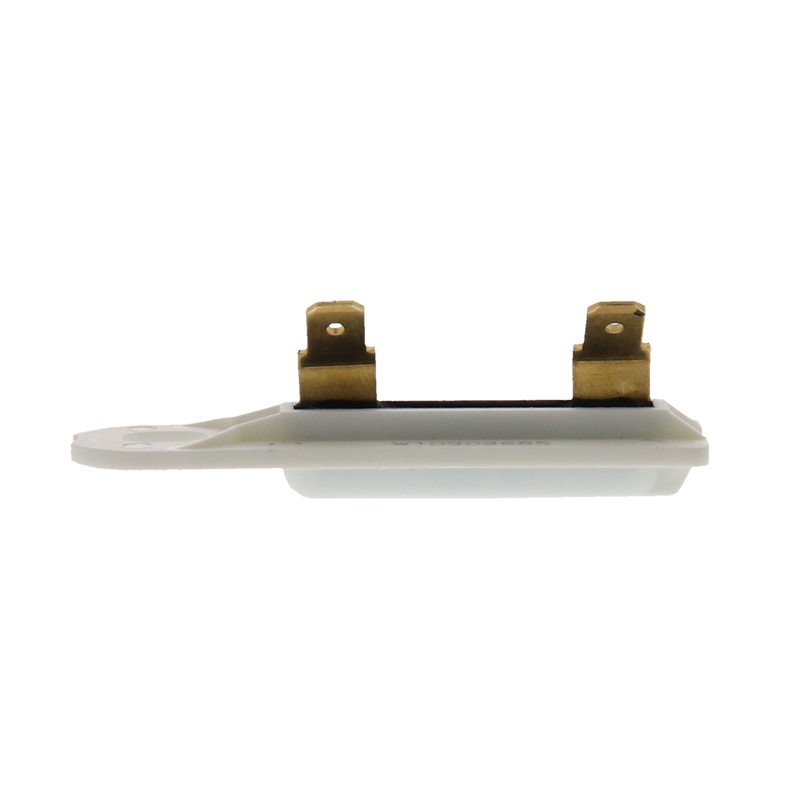

The W10909685 dryer thermal fuse helps protect the thermal circuit in compatible Whirlpool-manufactured dryers. When the fuse opens, the dryer may stop operating. This is a direct replacement for the verified part numbers listed below.

Compatible Part Numbers

• W10909685
• AP6034383
• 4461025
• PS11766766
• W10693363

Key Features

• Direct replacement: Replaces the verified W10909685 dryer thermal fuse references.
• Primary function: Helps interrupt the thermal circuit when unsafe heat conditions occur.
• Key benefit: Can restore dryer operation when the original fuse has opened.
• Installation ease: Installs in the original location after power is disconnected.

Fixes These Symptoms

• Dryer stops operating
• Original thermal fuse has failed or opened
• Thermal-protection circuit is interrupted
• Fuse shows visible damage after an overheat condition

Compatible Brands

• Whirlpool
• Maytag
• Kenmore
• Crosley

Compatible Models

Designed for specific Whirlpool-manufactured dryer models, including selected Maytag, Kenmore, and Crosley models. Please verify the complete appliance model and original part number before ordering.

Installation Instructions

Disconnect electrical power before servicing. Investigate the cause of overheating, photograph or label the connections, remove the original fuse, install the replacement in the same position and orientation, reinstall all guards, and perform a supervised test. Use a qualified technician for electrical service.

ERP replacement part. Confirm the full appliance model and original part number before ordering.
