Range Oven Thermal Fuse For: Whirlpool Maytag KitchenAid Amana W10545255 AP6022801 3021645 PS11756138 W10436434 WPW10545255VP W10545255

Range Oven Thermal Fuse For: Whirlpool Maytag KitchenAid Amana

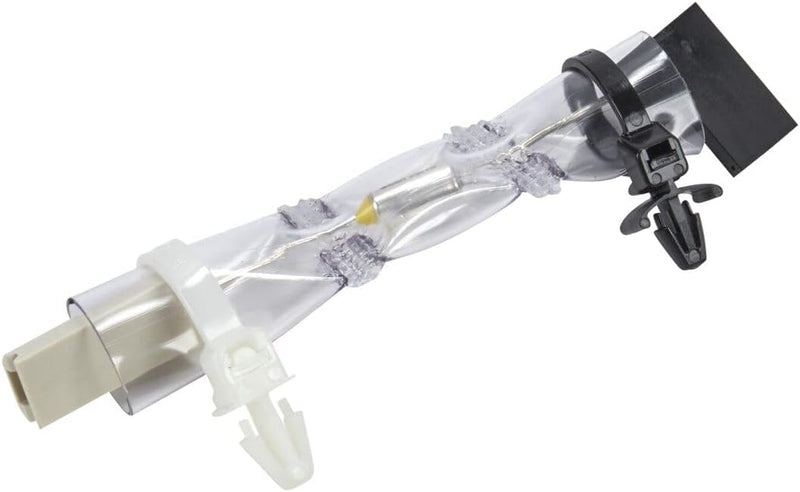

The W10545255 range oven thermal fuse is a 77°C safety component for compatible Whirlpool-built ranges and ovens. When the fuse opens, the related heating or control circuit may stop operating. This is a direct replacement for the verified part numbers listed below.

Compatible Part Numbers

• W10545255
• AP6022801
• 3021645
• PS11756138
• W10436434
• WPW10545255VP

Key Features

• Direct replacement: Replaces the verified W10545255 range oven thermal fuse references.
• Primary function: Provides thermal protection at the specified 77°C rating.
• Key benefit: Can restore the safety circuit when the original fuse has opened.
• Installation ease: Installs in the original location after power is disconnected.

Fixes These Symptoms

• Range oven safety circuit is open
• Original thermal fuse has failed or opened
• Related heating or control function stops operating
• Fuse shows visible damage after an overheat condition

Compatible Brands

• Whirlpool
• Maytag
• KitchenAid
• Amana

Compatible Models

Designed for specific Whirlpool-built range oven models, including selected Maytag, KitchenAid, and Amana models. Please verify the complete appliance model and original part number before ordering.

Installation Instructions

Disconnect electrical power before servicing. Photograph or label the connections, remove the original fuse, install the replacement in the same position and orientation, reinstall all guards, and perform a supervised test. Use a qualified technician for electrical service.

ERP replacement part. Confirm the full appliance model and original part number before ordering.
