Range Oven Thermal Fuse For: Whirlpool 3196548 WP3196548 ER3196548

Range Oven Thermal Fuse For: Whirlpool

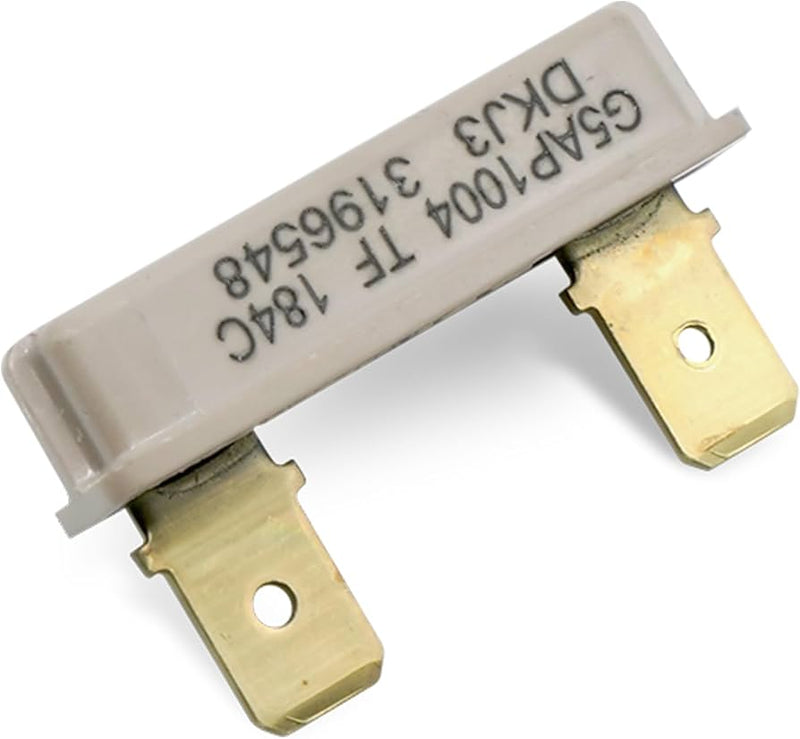

This 3196548 thermal fuse helps protect and control a compatible Whirlpool range or wall oven. A failed fuse can interrupt heating or stop the oven from operating. This is a direct replacement for the listed part numbers.

Compatible Part Numbers

• 3196548
• WP3196548
• ER3196548

Key Features

• Direct replacement: Matches the listed 3196548 application.
• Primary function: Helps protect the oven circuit at its specified temperature rating.
• Key benefit: Can restore operation when the original fuse has failed.
• Installation ease: Installs in the original location after power is disconnected.

Fixes These Symptoms

• Oven does not heat
• Heating stops unexpectedly
• Oven will not start after an over-temperature event
• Visible damage to the original thermal fuse

Compatible Brands

• Whirlpool

Compatible Models

Fits various models. Please verify compatibility with us before ordering.

Installation Instructions

Disconnect electrical power before servicing. Photograph or label the connections, remove the original fuse, install the replacement in the same position and orientation, reinstall all guards, and test the oven under supervision. Use a qualified technician for electrical service.

ERP replacement part. Confirm the full appliance model and original part number before ordering.
