Range Burner Receptacle For: GE Hotpoint Kenmore WB17X5113 AP2021559 2569 AH232646 EA232646 PS232646 WB02X7618 WB17X5094 WB2X7618 ERWB17X5113

Range Burner Receptacle For: GE Hotpoint Kenmore WB17X5113 AP2021559 2569 AH232646 EA232646 PS232646 WB02X7618 WB17X5094 WB2X7618 ERWB17X5113

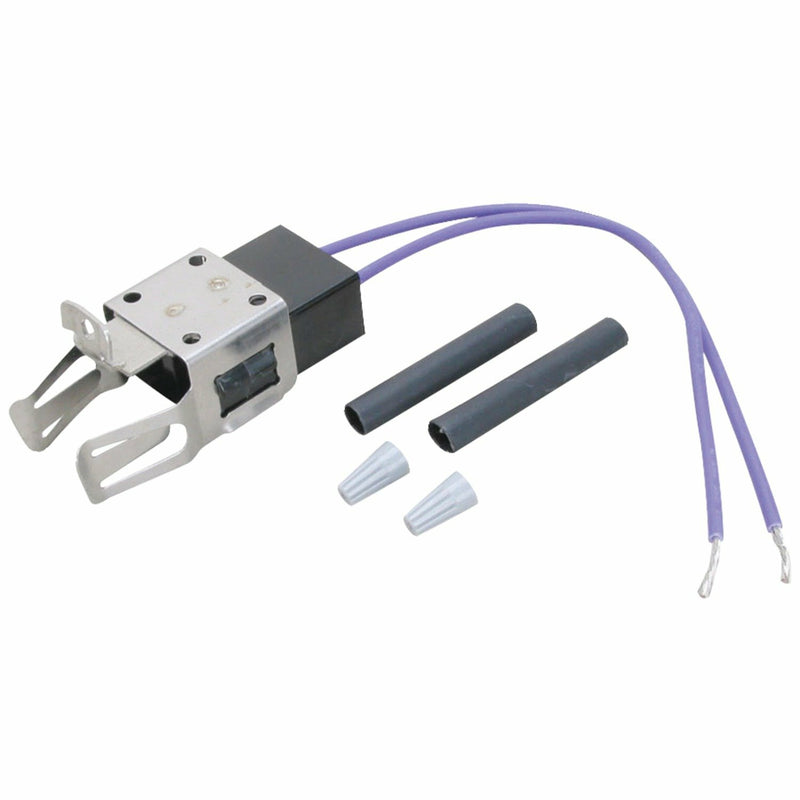

ERP WB17X5113 is a range surface-burner receptacle and terminal block for compatible GE-family electric ranges. It connects the surface element to the range wiring and helps restore heating when the original receptacle is worn, burned, loose, or intermittently operating. Confirm the mounting bracket, terminal layout, and appliance model before ordering.

Compatible Part Numbers

• WB17X5113
• AP2021559
• 2569
• AH232646
• EA232646
• PS232646
• WB02X7618
• WB17X5094
• WB2X7618

Key Features

• Direct replacement: Replaces the listed range burner receptacle references.
• Secure connection: Connects the surface element to the range wiring.
• Mounting support: Includes the receptacle mounting arrangement shown for this part.
• Service-ready fit: Verify the terminal layout, bracket orientation, and appliance model before installation.

Fixes These Symptoms

• Surface burner does not heat.
• Burner heats intermittently.
• Loose or burned receptacle connection.
• Visible terminal or connector damage.

Compatible Brands

• GE
• Hotpoint
• Kenmore

Compatible Models

Fits various GE-family range models. Please verify compatibility with us before ordering.

Installation Instructions

Disconnect electrical power before servicing. Record the original wire positions, remove the failed receptacle, install the replacement in the original orientation, secure the bracket and terminals, reinstall all guards, and perform a supervised test. Electrical work should be completed by a qualified technician.

Always verify your model number before ordering. Confirm the complete appliance model, original part number, terminal arrangement, and mounting before purchase.

ERP replacement part. Confirm the full appliance model and original part number before ordering.
