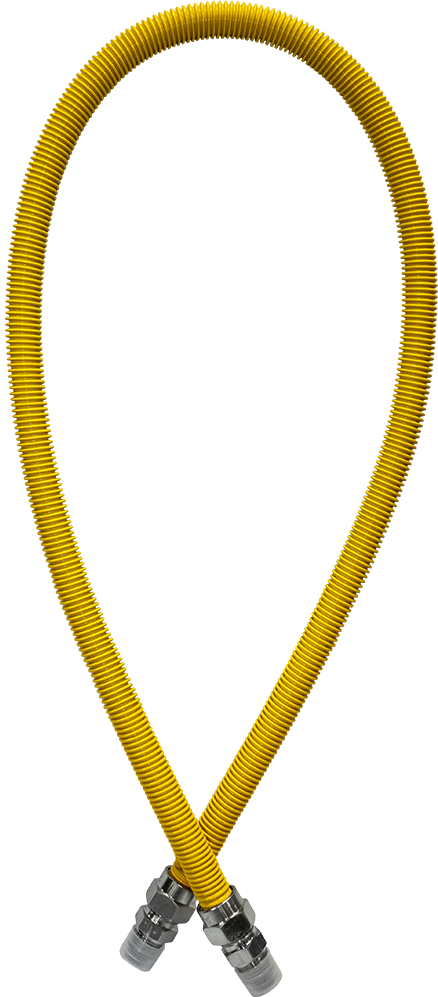

Ss Range Gas Connector 5/8" Od(1/2" Id) 1/2"Fip X 1/2" Mip GC30C-3132-72 ERP GC30C-3132-72

Gas Range Connector – ERP

ERP / Supco GC30C-3132-72 flexible gas connector is designed for compatible domestic ranges and other approved gas-appliance installations. Product specifications Brand: ERP / Supco Part number: GC30C-3132-72 Length: 72 inches Material: coated stainless steel Outside diameter: 5/8 inch Inside diameter: 1/2 inch Connections: 1/2-inch FIP x 1/2-inch MIP Color: yellow Factory leak tested Replaces / cross-reference: Dormont / Watts 30C-3132-72 Symptoms requiring replacement Visible kinks, crushed or abraded coating, corrosion, damaged threads, evidence of leakage, or a connector that is too short, excessively long, or incorrectly sized for the appliance. Installation instructions Shut off the upstream manual gas valve. Use only approved sealant on pipe threads where specified, avoid twisting or kinking the connector, maintain clearance from sharp edges and heat, tighten with proper backup wrenches, and leak-test every disturbed joint using an approved noncorrosive leak-detection solution before operating the appliance. Compatibility and safety Gas connector installation must comply with local codes and connector instructions. Verify length, diameter, fitting genders and sizes, appliance input, and approved application. A qualified gas technician is recommended.

Compatible Part Numbers

• GC30C-3132-72
• 30C-3132-72

Key Features

• Product type: Gas Range Connector
• SKU / MPN: GC30C-3132-72

Fixes These Symptoms

• Replace for visible kinks
• crushed or damaged coating
• corrosion
• damaged threads
• suspected leakage
• or incorrect connector length or sizing.

Compatible Brands

• ERP
• GENERIC REPLACEMENT PART

Always verify your complete appliance model number before ordering.

Installation Guidance

Close the upstream manual gas valve. Install without twisting or kinking, use approved thread sealant only where specified, tighten with backup wrenches, maintain safe clearance, and leak-test every disturbed connection with approved noncorrosive solution before operation. Follow local codes; qualified installation is recommended.
