Dishwasher Drain Solenoid Kit For: GE WD21X10060 WD21X10057 WD21X10064 DW10060 ERDW10060

ERP DW10060 Dishwasher Drain Solenoid Kit

This replacement drain solenoid kit operates the drain mechanism on compatible GE-built domestic dishwashers. It includes the solenoid, armature and linkage, mounting brackets, screws, and retaining E-ring to help restore proper drain-mechanism movement.

Product Details

• Electrical rating: 120 V.
• Product type: Dishwasher drain solenoid kit.
• SKU / MPN: ERDW10060 / DW10060.

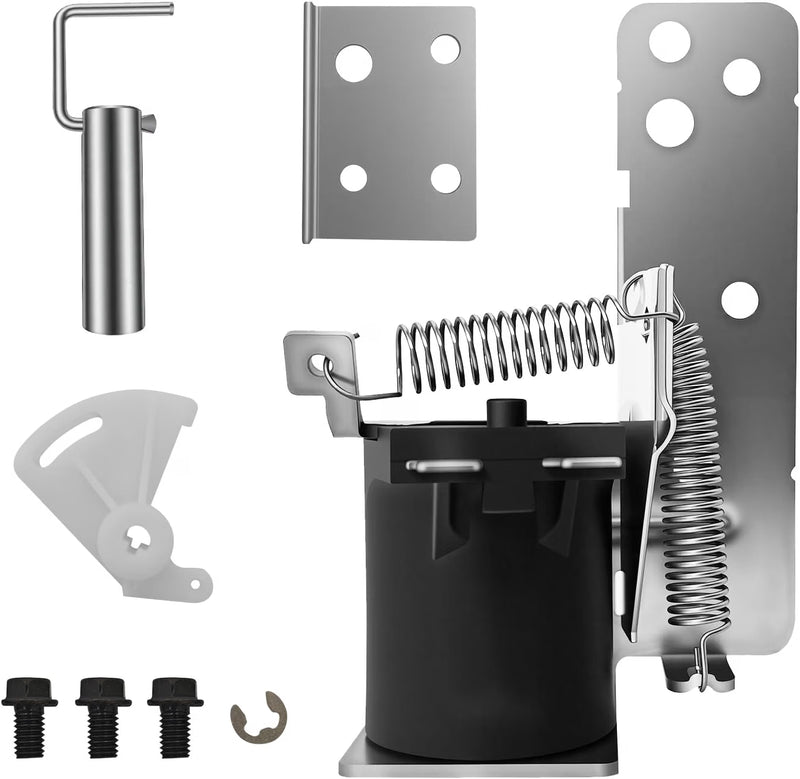

• Kit contents: solenoid, armature and linkage, mounting brackets, screws, and retaining E-ring.

Compatible Part Numbers

• DW10060
• WD21X10060
• WD21X10057
• WD21X10064
• ERDW10060

Key Features

• Drain solenoid kit for a domestic dishwasher drain mechanism.
• Includes the armature, linkage, brackets, screws, and E-ring.
• 120 V application.
• Source-confirmed GE-built dishwasher fitment.

Fixes These Symptoms

• Dishwasher will not drain.
• Dishwasher drains intermittently.
• Standing water remains after a cycle.
• Drain linkage binds or does not move.
• Solenoid coil tests open or shows overheating or mechanical damage.

Compatible Brands

GE

Compatible Models

Fits various models. Please verify compatibility with us before ordering.

Installation and Safety

1. Disconnect dishwasher power and shut off the water supply before servicing.
2. Remove the lower access panel and photograph the original wiring and linkage orientation.
3. Disconnect the coil leads, release the linkage and retaining hardware, and install the new brackets and solenoid in the original alignment.
4. Confirm free linkage movement, reconnect wiring, reinstall all shields, restore utilities, and run a supervised drain and leak test.
5. Do not energize the solenoid outside its intended mechanism. Use a qualified technician for electrical or water-related service.

ERP replacement part. Confirm the full appliance model and original part number before ordering.
