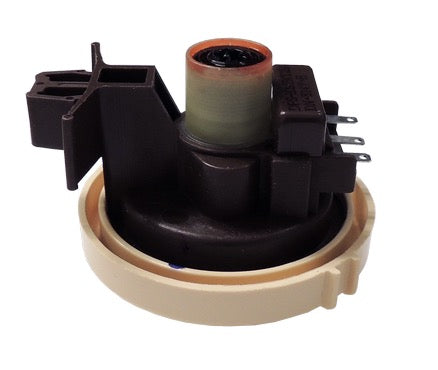

Washer Water Level Pressure Switch For: Samsung, Kenmore LP1703B, DC96-01703B, DC96-01703F
ERLP1703B
Availability
Ships Within 1-3 Business days
Part Number
ERLP1703B
MPN
ERLP1703B
Manufacturer
ERP
Compatible Brands:
Quality Parts
Easy to Install
Reliable
Long-Lasting
Washer Water Level Pressure Switch – Samsung
Safety first: unplug the washer and shut off the water supply before servicing, and have a qualified technician handle any electrical work.
The water level pressure switch tells your washer's control when the tub has filled to the selected level. If the switch fails, the washer may overfill, underfill, fail to start the wash cycle, or run at the wrong water level. This switch with .1250" spade terminals is a direct replacement for the original switch.
Product Details
- SKU: ERLP1703B
- Type: Washer water level pressure switch
- Terminals: .1250" spade
- Primary part number: LP1703B
Compatible Part Numbers
- LP1703B
- DC96-01703B
- DC96-01703F
Key Features
- Direct OEM-spec replacement: matches the original switch function and terminal type
- Water level control: signals the control board to stop filling at the selected level
- Prevents overfill: replaces a failed switch so cycles start and fill correctly
- Easy installation: connects to the air dome hose and spade terminals
Fixes These Symptoms
- Washer overfills or underfills the tub
- Wash cycle will not start after filling
- Wrong water level for the selected setting
- Fill continues without stopping
Compatible Brands
Samsung, Kenmore
Compatible Models
Fits various models. Please verify compatibility with us before ordering
Installation Instructions
- Unplug the washer and shut off the water supply.
- Access the pressure switch following the manufacturer's service instructions.
- Note the wire positions, then disconnect the wires and remove the air dome hose.
- Release the old switch and mount the new one.
- Reattach the hose and wires, restore power and water, and run a fill test.
If you are not comfortable performing this installation, contact a qualified appliance service technician.
Keep your washer fresh with affresh appliance cleaning products.
Safety Disclosure
Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
- Installation guidance for LP1703B. This is a preparation checklist, not a model-specific service procedure.
- Confirm the appliance model, original part number, dimensions, connector arrangement and electrical ratings before installation. Obtain the manufacturer's instructions for that exact model.
- Before service, disconnect electrical power. Isolate water or gas supplies if the repair affects them. Electrical connections and any stored-energy components should be handled by a qualified technician.
- Follow the exact model instructions for access, removal, mounting and connections. Do not force a similar-looking part to fit, improvise wiring, or bypass a fuse, thermostat, interlock or other safety device.
- Reinstall guards and panels, and complete the manufacturer-specified safety and operating checks before returning the appliance to service.
- If the exact installation procedure or compatibility is uncertain, stop and contact the appliance manufacturer or a qualified service technician.
- Product/cross-reference information (not a service manual): https://supco.com/web/supco_live/products/LP1703B.html
LP1703B DC96-01703B DC96-01703F
- Washer overfills or underfills the tub
- Wash cycle will not start after filling
- Wrong water level for the selected setting
- Fill continues without stopping
Not sure if this part fits your model? Our appliance experts can confirm compatibility — contact us.
