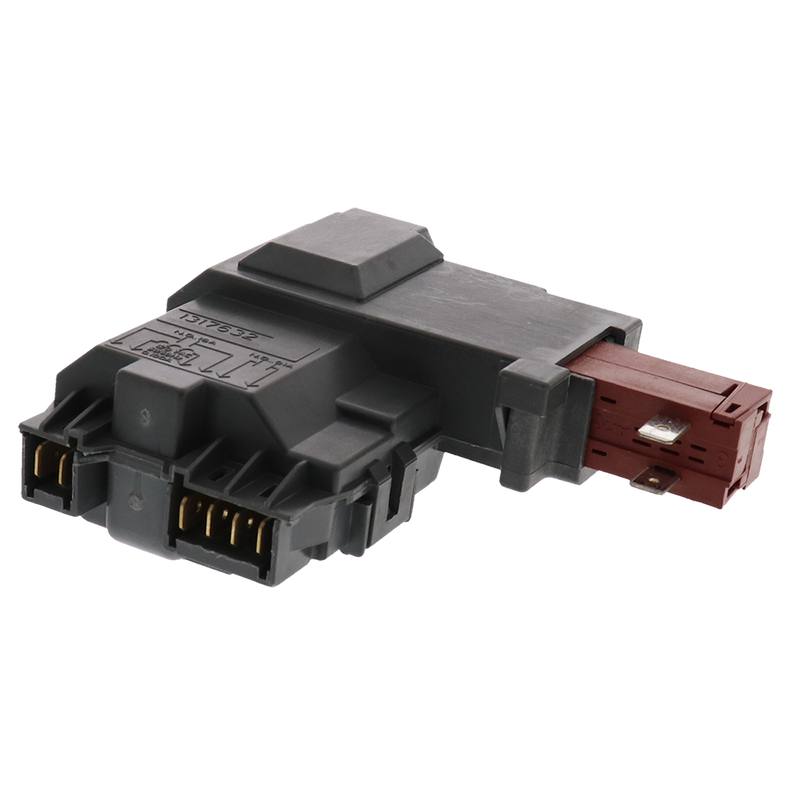

Washer Door Lock & Switch Assembly For: Electrolux, Frigidaire, GE LP3202, 131763202, WH10X10003

Washer Door Lock & Switch Assembly For: Electrolux, Frigidaire, GE LP3202, 131763202, WH10X10003

Safety first: Unplug the washer before servicing. Electrical connections should be handled by a qualified technician.

Restore safe door locking and cycle start with this ERP replacement door lock and switch assembly for compatible Electrolux, Frigidaire, and GE washers. A failed door lock can leave the washer unable to start, flashing a door error, or running with the door unsecured. This assembly measures approximately 4 inch L x 5 inch W. Verify the complete washer model, original part number, and connector arrangement before ordering.

Product Details

• SKU: ERLP3202
• Approximate dimensions: 4 inch L x 5 inch W

Compatible Part Numbers

• LP3202
• 131763202
• WH10X10003
• 131269400
• 131763245
• 131763200
• 131763255
• 131276400
• 131763256
• 131269401
• 131851900
• 131888900
• 5304483786
• WH10X27534
• WH10X10007
• WH10X27194

Key Features

• Direct replacement: Replaces the listed Electrolux, Frigidaire, and GE door lock assembly part numbers.
• Safety function: Locks the door and signals the control before the cycle can start.
• Wide cross-reference: Covers the full list of verified replacement part numbers.
• Installation check: Match the mounting tabs, strike, and wiring connector with the original assembly before installation.

Fixes These Symptoms

• Washer will not start or flashes a door error code
• Door will not lock or unlock at the start or end of a cycle
• Washer stops mid-cycle when the lock loses contact
• Door lock lever or striker is broken

Compatible Brands

Electrolux, Frigidaire, GE

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Unplug the washer before servicing.
2. Confirm the complete washer model, original part number, and connector arrangement.
3. Open the door and remove the clamp or screws holding the old lock assembly to the door frame.
4. Disconnect the wiring connector and transfer it to the new assembly.
5. Secure the new assembly, close the door, and run a test cycle to confirm the lock engages and the washer starts.

Use a qualified appliance technician if the wiring or installation procedure is uncertain.
