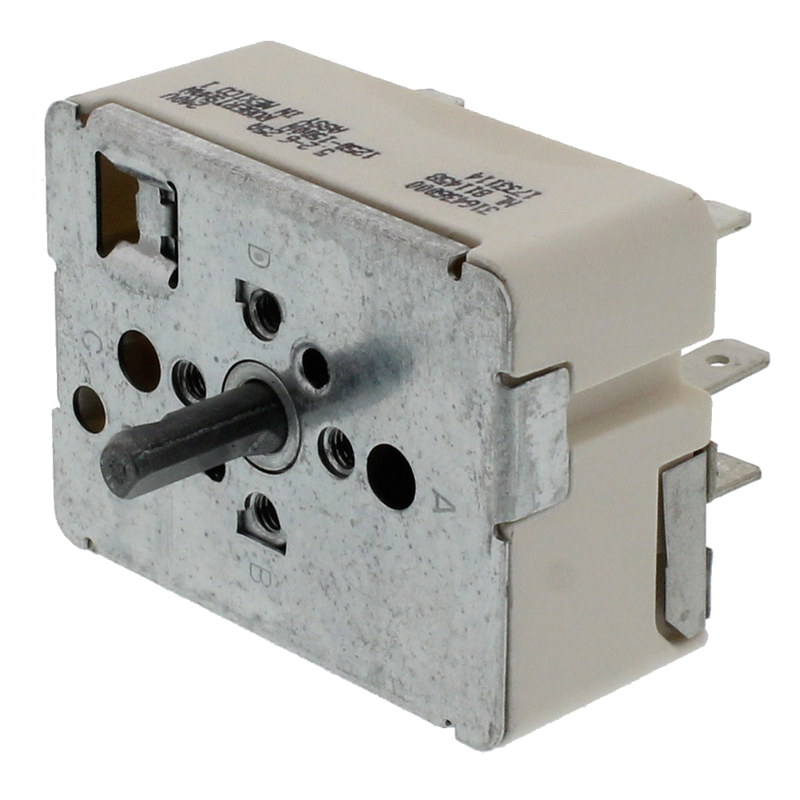

Range Infinite Switch For: Electrolux ES6000, 316436000, 316021500, 1155394, 5304506424

Range Infinite Switch For: Electrolux ES6000, 316436000, 316021500, 1155394, 5304506424

Safety first: Unplug the range or turn off its breaker before servicing. Electrical connections should be handled by a qualified technician.

Restore precise surface-burner heat control with this ERP replacement infinite switch for compatible Electrolux ranges. A failed infinite switch can leave a burner dead, stuck on high, or unable to hold a low simmer. This switch is rated 240V, 5.2-6.25A (1250-1500W) with five .25 inch male spade terminals labeled L1, L2, H2, H1, and P. Verify the complete range model, original part number, and terminal layout before ordering.

Product Details

• SKU: ERES6000
• Country of origin: China
• Voltage: 240V
• Wattage: 1250-1500W
• Amperage: 5.2-6.25A
• Terminals: Five .25 inch male spade, labeled L1, L2, H2, H1, P

Compatible Part Numbers

• ES6000
• 316436000
• 316021500
• 1155394
• 5304506424

Key Features

• Direct replacement: Replaces the listed Electrolux infinite switch part numbers.
• Burner control: Regulates the heat level of a surface element.
• Matched ratings: 240V, 5.2-6.25A (1250-1500W) with five .25 inch male spade terminals.
• Installation check: Match the terminal labels, layout, and ratings with the original switch before wiring.

Fixes These Symptoms

• Surface burner will not heat at all
• Burner only heats on high or will not turn down
• Burner stays hot regardless of the knob setting
• Surface element heats erratically or will not hold a simmer

Compatible Brands

Electrolux

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Disconnect electrical power before servicing the range.
2. Confirm the complete range model, original part number, and terminal arrangement.
3. Remove the control knob and panel to access the switch, and label the wires before disconnecting them.
4. Transfer the wires to the matching terminals on the new switch and secure it in place.
5. Reassemble the range and test the burner at each heat setting before returning it to service.

Use a qualified appliance technician if the wiring, terminal layout, or installation procedure is uncertain.
