Range Infinite Switch For: Whirlpool ES3536, 8203536, 9751758, 1059867
ERES3536
Availability
Ships Within 1-3 Business days
Part Number
ERES3536
MPN
ERES3536
Manufacturer
ERP
Compatible Brands:
Quality Parts
Easy to Install
Reliable
Long-Lasting

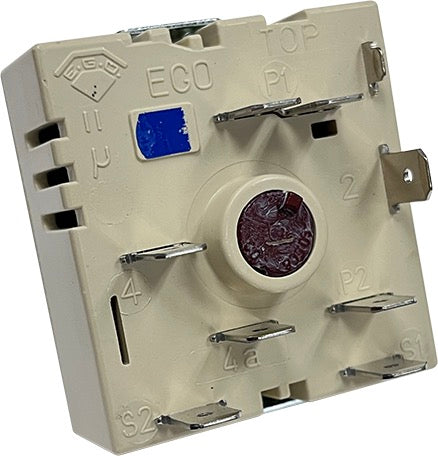

Range Infinite Switch For: Whirlpool ES3536, 8203536, 9751758, 1059867
Safety first: Unplug the range or turn off its breaker before servicing. Electrical connections should be handled by a qualified technician.
Restore precise surface-burner heat control with this ERP replacement infinite switch for compatible Whirlpool ranges. A failed infinite switch can leave a burner dead, stuck on high, or unable to hold a low simmer. This dual halogen element switch is rated 240VAC 15A and is used on some free standing and slide-in models. Verify the complete range model, original part number, and terminal layout before ordering.
Product Details
- SKU: ERES3536
- Country of origin: China
- Voltage: 240VAC
- Amperage: 15A
- Approximate dimensions: 2-1/4 inch L x 1-3/4 inch W x 2 inch H
Compatible Part Numbers
- ES3536
- 8203536
- 9751758
- 1059867
Key Features
- Direct replacement: Replaces the listed Whirlpool infinite switch part numbers.
- Burner control: Regulates the temperature of a dual halogen surface element.
- Matched ratings: 240VAC, 15A.
- Installation check: Match the terminal layout and ratings with the original switch before wiring.
Fixes These Symptoms
- Surface burner will not heat at all
- Burner only heats on high or will not turn down
- Burner stays hot regardless of the knob setting
- Surface element heats erratically or will not hold a simmer
Compatible Brands
Whirlpool
Compatible Models
Fits various models. Please verify compatibility with us before ordering
Installation Instructions
- Disconnect electrical power before servicing the range.
- Confirm the complete range model, original part number, and terminal arrangement.
- Remove the control knob and panel to access the switch, and label the wires before disconnecting them.
- Transfer the wires to the matching terminals on the new switch and secure it in place.
- Reassemble the range and test the burner at each heat setting before returning it to service.
Use a qualified appliance technician if the wiring, terminal layout, or installation procedure is uncertain.
For appliance cleaning products, visit affresh appliance cleaning products.
Safety Disclosure
Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
- Installation guidance for ES353 This is a preparation checklist, not a model-specific service procedure.
- Confirm the appliance model, original part number, dimensions, connector arrangement and electrical ratings before installation. Obtain the manufacturer's instructions for that exact model.
- Before service, disconnect electrical power. Isolate water or gas supplies if the repair affects them. Electrical connections and any stored-energy components should be handled by a qualified technician.
- Follow the exact model instructions for access, removal, mounting and connections. Do not force a similar-looking part to fit, improvise wiring, or bypass a fuse, thermostat, interlock or other safety device.
- Reinstall guards and panels, and complete the manufacturer-specified safety and operating checks before returning the appliance to service.
- If the exact installation procedure or compatibility is uncertain, stop and contact the appliance manufacturer or a qualified service technician.
- Product/cross-reference information (not a service manual): https://supco.com/web/supco_live/products/ES353html
ES3536 8203536 9751758 1059867
- Surface burner will not heat at all
- Burner only heats on high or will not turn down
- Burner stays hot regardless of the knob setting
- Surface element heats erratically or will not hold a simmer
Not sure if this part fits your model? Our appliance experts can confirm compatibility — contact us.
