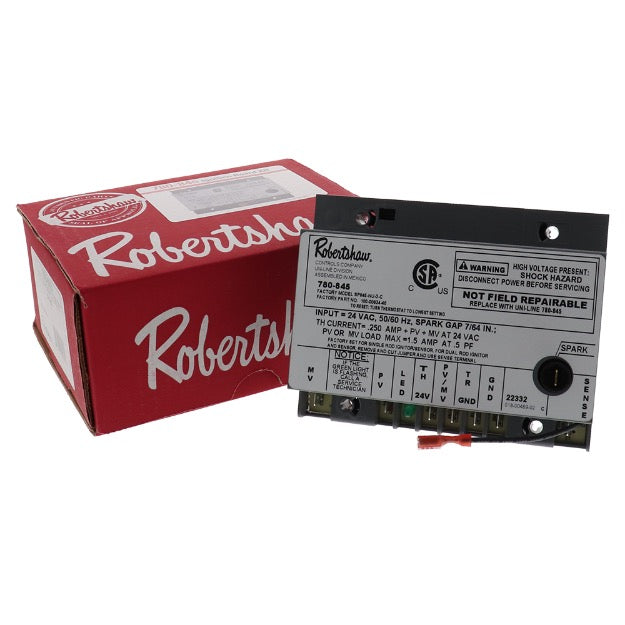

Gas Heating Intermittent Pilot Ignition Module Lockout Universal For: 780-845

Gas Heating Intermittent Pilot Ignition Module Lockout Universal For: 780-845

Safety first: Installation must be performed by a qualified gas-service technician. Isolate electrical power and fuel before service, never bypass flame-safety controls, and complete required leak, ignition, and combustion checks before returning the equipment to service.

Restore safe pilot ignition with this ERP replacement intermittent-pilot ignition module with flame monitoring and safety lockout for compatible gas-heating systems. The module sparks the pilot, proves flame, and protects the system: per the manufacturer documentation it runs a 90-second ignition trial, waits six minutes between retries, and locks out for one hour after three unsuccessful trials. Do not substitute a non-lockout module where the original lockout design is installed. Match the exact installed control, gas application, and wiring requirements before ordering.

Product Details

• SKU: ER780-845
• Country of origin: China
• Type: Intermittent pilot ignition module with safety lockout
• Ignition trial: 90 seconds
• Retry interval: 6 minutes
• Lockout: 1 hour after 3 unsuccessful trials

Compatible Part Numbers

• 780-845

Key Features

• Direct replacement: Replaces the lockout module identified by the listed part number.
• Safety lockout: Shuts down after repeated failed ignition trials.
• Flame monitoring: Proves flame before allowing continued operation.
• Match the original design: Not interchangeable with non-lockout modules.

Fixes These Symptoms

• Pilot sparks but never lights or locks out
• Heater locks out for an hour after failed ignition attempts
• Burner never opens despite a good pilot flame

Compatible Brands

Universal is a catalog label, not a guarantee of fit to every appliance, brand, or model. Match the original part, full equipment model, and configuration before ordering.

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Shut off the gas supply and isolate electrical power to the equipment.
2. Confirm the control type, gas application, sensing arrangement, and wiring diagram.
3. Disconnect the gas, pilot, and control wiring from the old module.
4. Install the new module, reconnect the pilot and wiring, and leak-test every connection.
5. Complete required ignition and combustion checks before returning the equipment to service.

Ignition, flame-proving, and gas-control faults require professional diagnosis; replacing this component will not correct every no-heat condition.
