ERP
Refrigerator Ice Maker For: Whirlpool RIM5709, WPW10715709, W10715709, W10365751, W10365049, W10711927, ECKMFEZ1, ECKMFEZ2, W11517113
ERRIM5709
Availability
Ships Within 1-3 Business days
Part Number
ERRIM5709
MPN
ERRIM5709
Manufacturer
ERP
Compatible Brands:
Quality Parts
Easy to Install
Reliable
Long-Lasting
Frequently Bought Together
Refrigerator Ice Maker For: Whirlpool RIM5709, WPW10715709, W10715709, W10365751, W10365049, W10711927, ECKMFEZ1, ECKMFEZ2, W11517113
Safety first: Unplug the refrigerator and shut off the water supply before servicing.

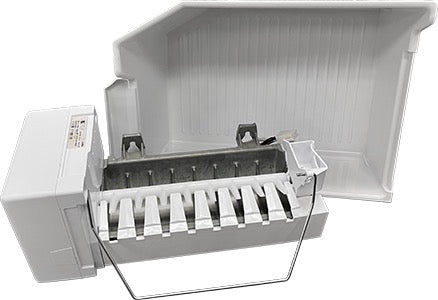

Restore automatic ice production with this ERP replacement ice maker for compatible Whirlpool refrigerators. A worn ice maker can stop harvesting, produce small or hollow cubes, or leak water into the freezer; this complete assembly brings ice production back. It runs on 120V, measures 11.25 x 5.0 x 4.50 inches, and includes the harness, arm, fill cup, and ice bin. It is a direct replacement for the listed part numbers. Verify the complete appliance model and original part number before ordering.
Product Details
- SKU: ERRIM5709
- Country of origin: China
- Voltage: 120V
- Dimensions: 11.25 x 5.0 x 4.50 inches
- Included: Harness, arm, fill cup, and ice bin
Compatible Part Numbers
- RIM5709
- WPW10715709
- W10715709
- W10365751
- W10365049
- W10711927
- ECKMFEZ1
- ECKMFEZ2
- W11517113
Key Features
- Direct replacement: Replaces the listed Whirlpool ice maker part numbers.
- Complete kit: Harness, arm, fill cup, and ice bin included.
- Correct ratings: 120V operation matching the original ice maker.
- Broad coverage: Cross-references a wide family of Whirlpool ice maker numbers.
Fixes These Symptoms
- Ice maker stops producing or harvesting ice
- Cubes are small, hollow, or fused together
- Water leaks into the freezer from the ice maker
Compatible Brands
Whirlpool
Compatible Models
Fits various models. Please verify compatibility with us before ordering
Installation Instructions
- Unplug the refrigerator and shut off the water supply.
- Confirm the refrigerator model, original part number, and voltage.
- Remove the freezer shelf or panel to access the ice maker.
- Disconnect the harness and water line, then unscrew the old ice maker.
- Install the new assembly, reconnect the harness and water line, and run a harvest cycle.
Use a qualified appliance technician if the removal procedure is uncertain.
For appliance cleaning products, visit affresh appliance cleaning products.
Safety Disclosure
Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
- Installation guidance for RIM570 This is a preparation checklist, not a model-specific service procedure.
- Confirm the appliance model, original part number, dimensions, connector arrangement and electrical ratings before installation. Obtain the manufacturer's instructions for that exact model.
- Before service, disconnect electrical power. Isolate water or gas supplies if the repair affects them. Electrical connections and any stored-energy components should be handled by a qualified technician.
- Follow the exact model instructions for access, removal, mounting and connections. Do not force a similar-looking part to fit, improvise wiring, or bypass a fuse, thermostat, interlock or other safety device.
- Reinstall guards and panels, and complete the manufacturer-specified safety and operating checks before returning the appliance to service.
- If the exact installation procedure or compatibility is uncertain, stop and contact the appliance manufacturer or a qualified service technician.
- Product/cross-reference information (not a service manual): https://supco.com/web/supco_live/products/RIM570html
RIM5709 WPW10715709 W10715709 W10365751 W10365049 W10711927 ECKMFEZ1 ECKMFEZ2 W11517113
- Ice maker stops producing or harvesting ice
- Cubes are small, hollow, or fused together
- Water leaks into the freezer from the ice maker
Compatible models
Fits various models. Please verify compatibility with us before ordering
