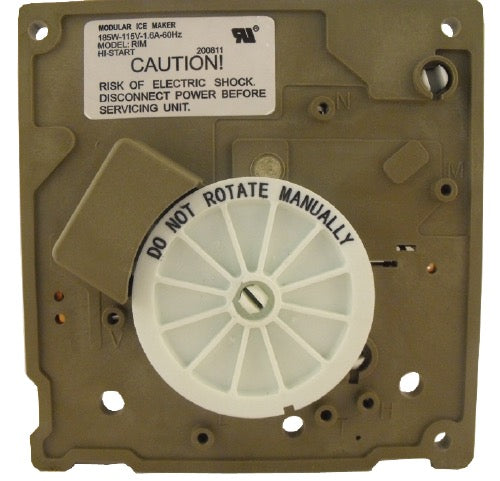

Refrigerator Ice Maker Module Head For: Whirlpool IMM8366, 628519, 628366, W10190935, 483042
ERIMM8366
Availability
Ships Within 1-3 Business days
Part Number
ERIMM8366
MPN
ERIMM8366
Manufacturer
ERP
Compatible Brands:
Quality Parts
Easy to Install
Reliable
Long-Lasting
Frequently Bought Together
Refrigerator Ice Maker Module Head For: Whirlpool IMM8366, 628519, 628366, W10190935, 483042
Safety first: Unplug the refrigerator before servicing. Module replacement involves the ice maker's electrical connections and should follow the model service procedure.
Restore ice maker harvesting with this ERP replacement module head for compatible Whirlpool built-in refrigerators. The module head drives the ejector and water fill timing; when it fails, the ice maker clicks without the ejector turning, freezes over, or stops harvesting altogether. This module runs at 115V, 60Hz, measures 4.25 x 4.25 x 1.50 inches, and is a direct replacement for the listed part numbers. Verify the complete appliance model and original part number before ordering.
Product Details
- SKU: ERIMM8366
- UPC: 840993045585
- Country of origin: China
- Voltage / frequency: 115V, 60Hz
- Dimensions: 4.25 x 4.25 x 1.50 inches
Compatible Part Numbers
- IMM8366
- 628519
- 628366
- W10190935
- 483042
Key Features
- Direct replacement: Replaces the listed Whirlpool module head part numbers.
- Drives harvesting: Restores ejector timing and water fill control.
- Correct ratings: 115V, 60Hz operation matching the original module.
- Easy service: Mounts to the ice maker with the original screws and wiring.
Fixes These Symptoms
- Ice maker clicks but the ejector does not turn
- Ice maker freezes over and stops harvesting
- Ice maker runs but never ejects cubes
Compatible Brands
Whirlpool
Compatible Models
Fits various models. Please verify compatibility with us before ordering
Installation Instructions
- Unplug the refrigerator before servicing.
- Confirm the appliance model, original part number, and module ratings.
- Remove the ice maker from the freezer and expose the module head.
- Swap the module head onto the ice maker with the original screws and wiring.
- Reinstall, restore power, and run a harvest cycle to confirm operation.
Use a qualified appliance technician if the ice maker removal procedure is uncertain.
For appliance cleaning products, visit affresh appliance cleaning products.
Safety Disclosure
Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
- Installation guidance for IMM836 This is a preparation checklist, not a model-specific service procedure.
- Confirm the appliance model, original part number, dimensions, connector arrangement and electrical ratings before installation. Obtain the manufacturer's instructions for that exact model.
- Before service, disconnect electrical power. Isolate water or gas supplies if the repair affects them. Electrical connections and any stored-energy components should be handled by a qualified technician.
- Follow the exact model instructions for access, removal, mounting and connections. Do not force a similar-looking part to fit, improvise wiring, or bypass a fuse, thermostat, interlock or other safety device.
- Reinstall guards and panels, and complete the manufacturer-specified safety and operating checks before returning the appliance to service.
- If the exact installation procedure or compatibility is uncertain, stop and contact the appliance manufacturer or a qualified service technician.
- Product/cross-reference information (not a service manual): https://supco.com/web/supco_live/products/IMM836html
IMM8366 628519 628366 W10190935 483042
- Ice maker clicks but the ejector does not turn
- Ice maker freezes over and stops harvesting
- Ice maker runs but never ejects cubes
