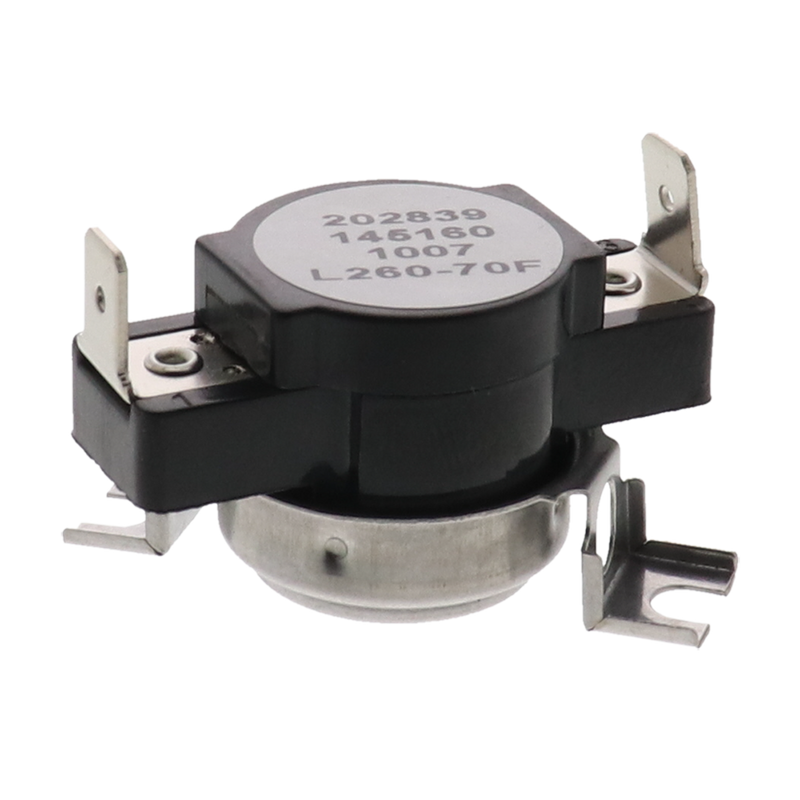

Dryer High Limit Thermostat For: Frigidaire SET4267, 3204267, 73204267

Dryer High Limit Thermostat For: Frigidaire SET4267, 3204267, 73204267

Safety first: Unplug the dryer before servicing. If a high-limit thermostat has failed, also check for restricted airflow, since a clogged vent is the most common cause.

Protect your dryer from overheating with this ERP replacement high-limit thermostat for compatible Frigidaire dryers. The high-limit thermostat cuts power to the heating circuit when exhaust temperature climbs too high; when it fails or trips, the dryer tumbles but produces no heat, overheats, or shuts off mid-cycle. This 60T21-style thermostat opens at 260°F and closes at 190°F, rated up to 25A at 250VAC, and is a direct replacement for the listed part numbers. Verify the complete dryer model and original part number before ordering.

Product Details

• SKU: ERSET4267
• Country of origin: China
• Style: 60T21, rated up to 25A @ 250VAC
• Open temperature: 260°F
• Close temperature: 190°F
• Differential: 70°F

Compatible Part Numbers

• SET4267
• 3204267
• 73204267

Key Features

• Direct replacement: Replaces the listed Frigidaire high-limit thermostat part numbers.
• Overheat protection: Opens at 260°F to cut power to the heating circuit.
• Correct electrical match: 60T21 style rated up to 25A at 250VAC.
• Easy installation: Single mounting screw and push-on wire connections.

Fixes These Symptoms

• Dryer tumbles but produces no heat
• Dryer overheats or shuts off mid-cycle
• Clothes come out extremely hot or the thermal fuse keeps blowing

Compatible Brands

Frigidaire

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Unplug the dryer before servicing.
2. Confirm the dryer model, original part number, and thermostat rating.
3. Access the heating element housing and disconnect the old thermostat wires.
4. Mount the new thermostat and connect the wires.
5. Restore power and run a heat cycle while confirming normal operation.

Check and clean the vent system if the thermostat failed from overheating.
