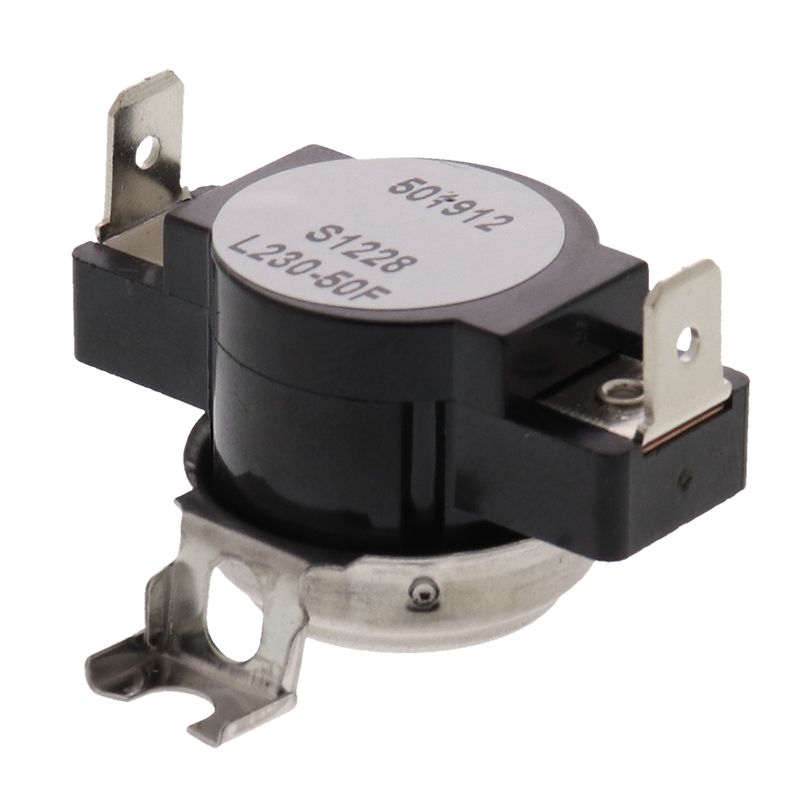

Dryer High-Limit Thermostat For: Samsung, Whirlpool, Kenmore L0017A, DC47-00017A

Dryer High-Limit Thermostat For: Samsung, Whirlpool, Kenmore L0017A, DC47-00017A

Safety first: Unplug the dryer before servicing. If a high-limit thermostat has failed, also check for restricted airflow, since a clogged vent is the most common cause.

Protect your dryer from overheating with this ERP replacement high-limit thermostat for compatible Samsung, Whirlpool, and Kenmore dryers. The high-limit thermostat cuts power to the heating circuit when exhaust temperature climbs too high; when it fails or trips, the dryer tumbles but produces no heat, overheats, or shuts off mid-cycle. This 60T11 style L230-50F thermostat is a direct replacement for the listed part numbers. Verify the complete dryer model and original part number before ordering.

Product Details

• SKU: ERL0017A
• Country of origin: China
• Style: 60T11, L230-50F
• Terminals: 1/4-inch push-on
• Voltage: 125/250VAC
• Amperage: 25A

Compatible Part Numbers

• L0017A
• DC47-00017A

Key Features

• Direct replacement: Replaces the listed dryer high-limit thermostat part numbers.
• Overheat protection: Cuts power to the heating circuit when exhaust temperature climbs too high.
• Correct electrical match: Rated 125/250VAC at 25A with 1/4-inch push-on terminals.
• Easy installation: Single mounting screw and push-on wire connections.

Fixes These Symptoms

• Dryer tumbles but produces no heat
• Dryer overheats or shuts off mid-cycle
• Clothes come out extremely hot or the thermal fuse keeps blowing

Compatible Brands

Samsung, Whirlpool, Kenmore

Compatible Models

Fits various models. Please verify compatibility with us before ordering

Installation Instructions

1. Unplug the dryer before servicing.
2. Confirm the dryer model, original part number, and thermostat rating.
3. Access the heating element housing and disconnect the old thermostat wires.
4. Mount the new thermostat and connect the 1/4-inch push-on terminals.
5. Restore power and run a heat cycle while confirming normal operation.

Check and clean the vent system if the thermostat failed from overheating.
